SOUTHBEND 13″ Model # CL145B LAMINATED BRASS LATHE SHIMS
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Refund Will Be Given As | Money Back |
| Brand | FSH-USA |
| Treated Material | Brass |
| Model | SOUTHBEND # CL145B |
| Country Of Manufacture | United States |
| Swing Over Bed | 13 in |

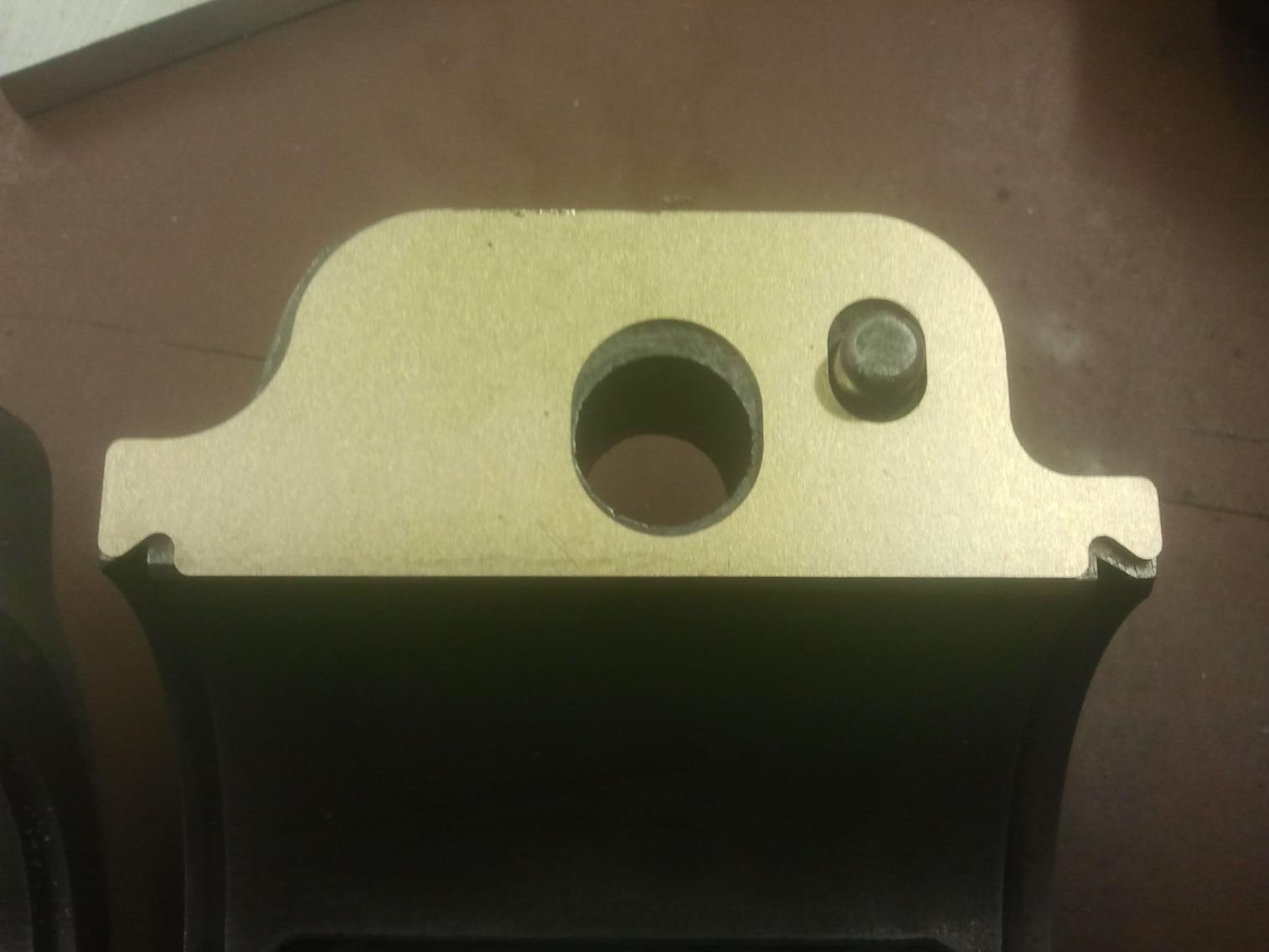

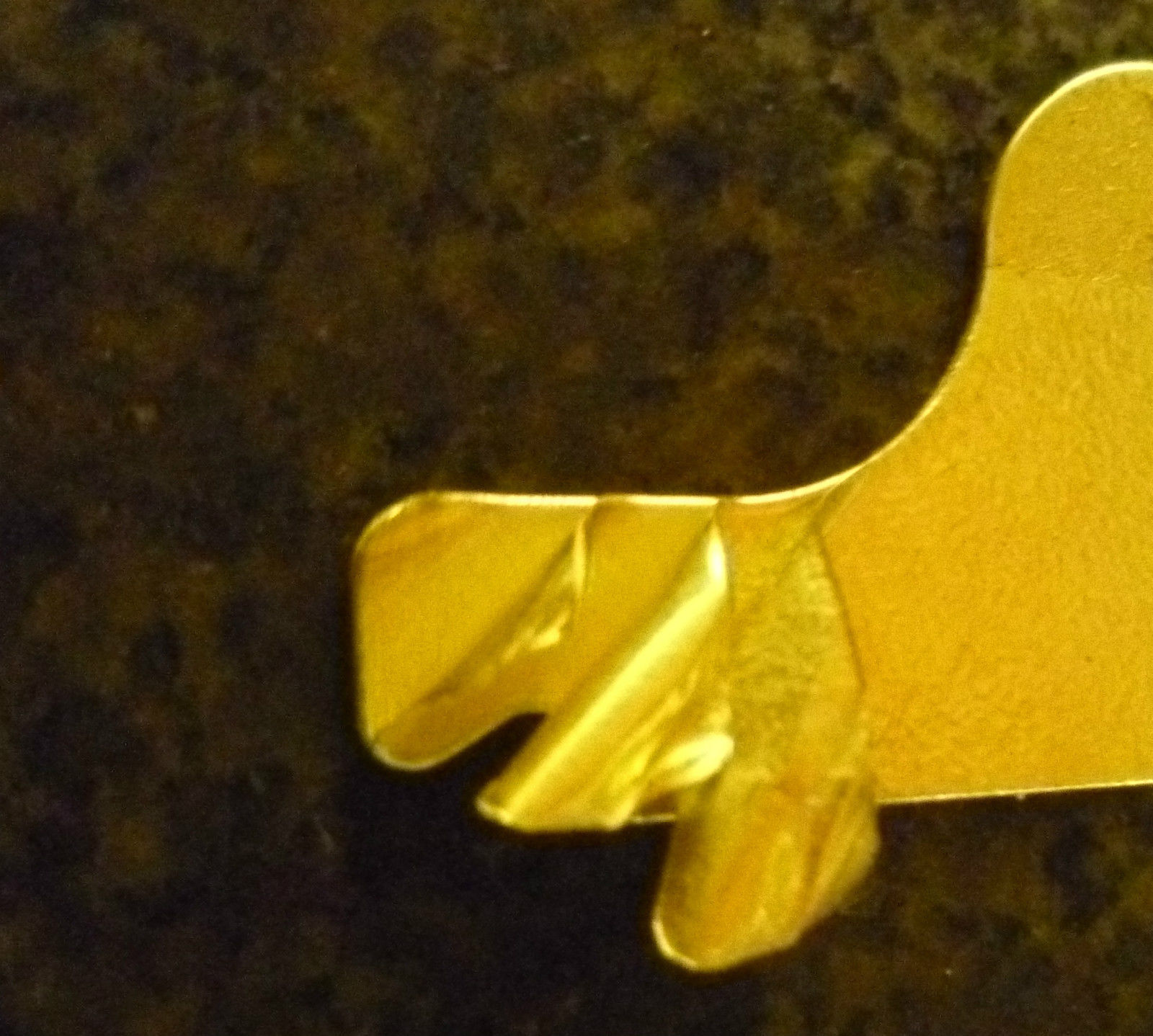

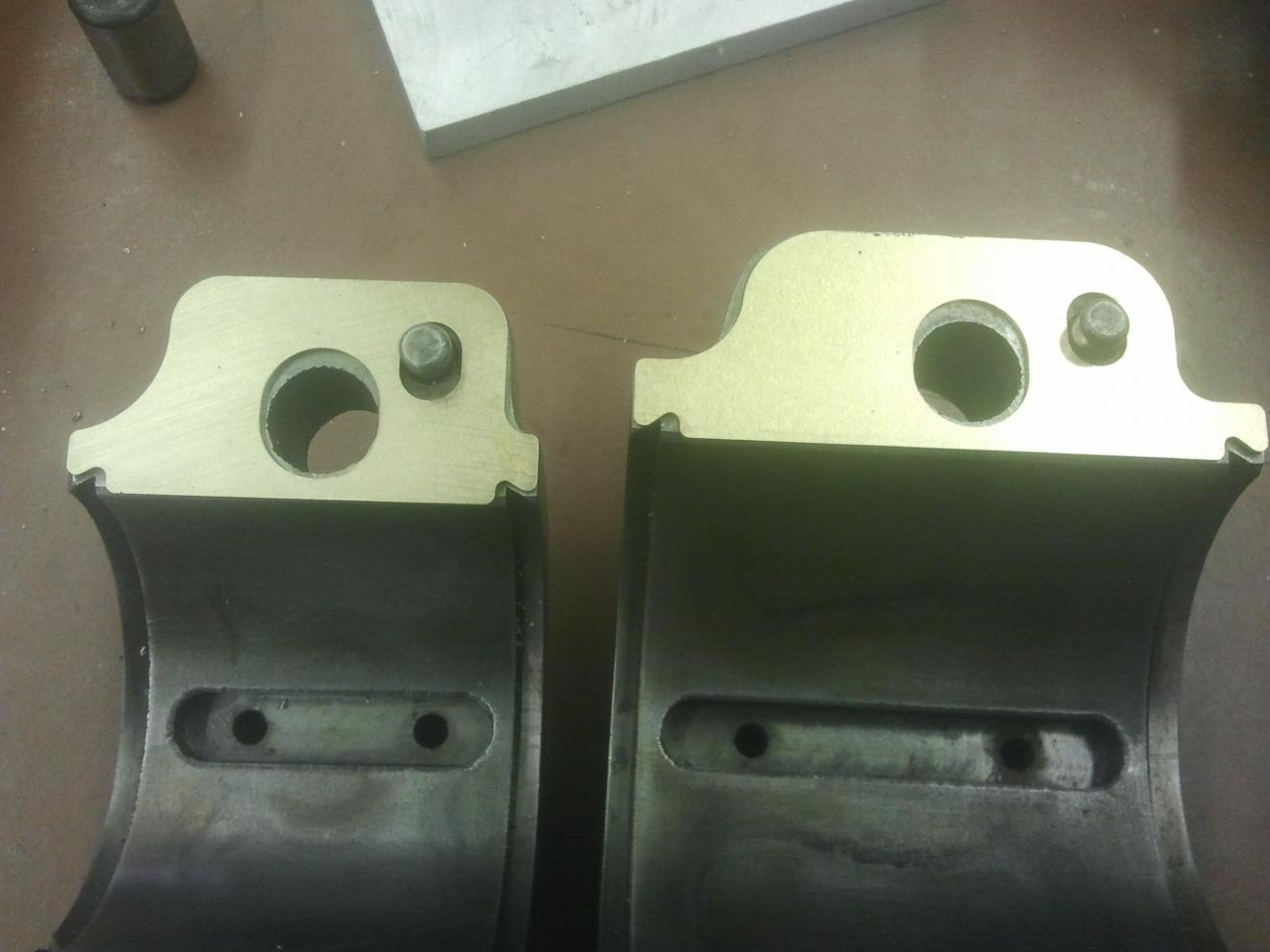

DON'T WAIT GET THEM WHILE THEY ARE IN STOCKEACH SET INCLUDES (2) FRONT LAMINATED SHIMS AND (2) REAR LAMINATED SHIMSAFTER THESE SELL IT MIGHT BE WEEKS TILL THE NEXT BATCH BECOME AVAILABLE SOUTH BEND 13" Model # CL145B LAMINATED BRASS SHIMS ONLY DIE CUT MADE IN U.S.A. AMERICA THESE ARE LAMINATED BRASS SHIMS ONLY FOSOUTH BEND 13" Model # CL145B . THE LAMINATION'S ARE (1) LAYER .001, (10) LAYERS .002 BRASS TOTAL THICKNESS IS .021 +/- .001. I MADE THESE BECAUSE I SAW THE QUALITY OF THE ORIGINALS AND THOUGHT THAT THEY COULD USE SOME IMPROVEMENT. MADE BETTER THAN THE ORIGINALS, THEY TAKE INTO ACCOUNT THE MISALIGNMENT OF THE FACTORY HAND DRILLED SCREW HOLE AND DOWEL PIN LOCATOR. MADE IN THE U.S.A. BY ME IN MY HOME MACHINE SHOP. EACH SET INCLUDES (2) FRONT LAMINATED SHIMS AND (2) REAR LAMINATED SHIMSImportant Note: Oddly South bend went through several dowel pin sizes. And locations for the pins were often drilled by hand. I discovered that a hole which accommodated all of the possible locations would have been too large (thus diminishing the footprint of the shim) after I took a survey of several machines. In saying this, my locations and sizes are "by design" so as to meet the greatest need while weighing functionality. To correct any possible dowel pin deviations with your shims I would suggest marking the area that needs to be fitted with a felt tip pen and using a small fine round file or dremel tool. Do not force shims over dowel pins. Thank you
