19″ x 54″ LEBLOND-MAKINO “19 REGAL” ENGINE LATHE w/INCH-METRIC – #29881
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | LeBlond |
| Chuck Size | 12 in |
| Machine Type | Engine Lathe |
| Max Spindle Speed (RPM) | 1500 - 2000 |
| Distance Between Centers | 51 in - 60 in |
| Model | 19 Regal |
| Swing Over Bed | 19 in |

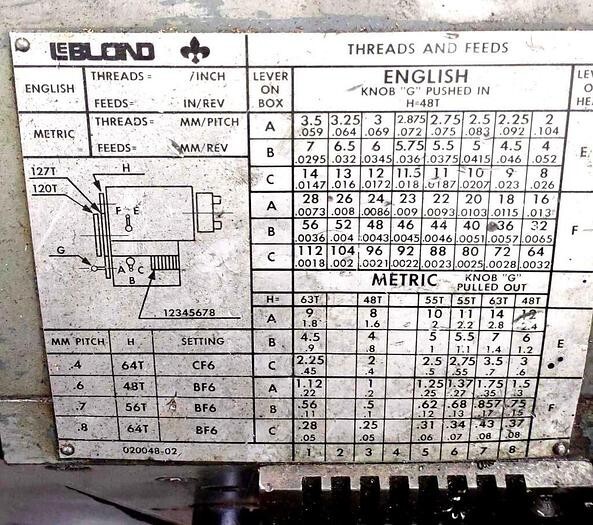

19" x 54" LEBLOND-MAKINO "19 REGAL" ENGINE LATHESerial No. 9E-538, Model 19" REGALEQUIPPED WITH:12" 3-Jaw Chuck w/Jaws Servo Shift Hydraulic ShiftingInch-Metric Threading Hard Ways - Threading DialTurret Depth StopCoolant System (Built-In)Miscellaneous Centers & Tool HoldersCATALOG SPECIFICATIONS:Swing Over Bed Ways, Rated19"Swing Over Bed Ways, Actual19-1/4"Swing Over Cross-Slide12-1/4"Distance Between Centers54"Hole Thru Spindle3 1/16"Spindle Nose L-2(12) Spindle Speeds, Range40 to 1600 RPM(48) Longitudinal Carriage Feeds.0018 to .104 IPR(48) Thread Changes, Range2 to 112 TPI(48) Metric Thread Changes, Range .05 to 2.6 MMPRCross-Slide Cross Feed w/o Taper11-1/4"Tailstock, Spindle Taper#4 MTTailstock, Spindle Diameter2-7/16"Tailstock, Spindle Travel7"Motor, Horsepower/RPM7.5 HP/1800 RPM Overall Dimensions, L x D113" x 50"Weight, Approximately4440 LBSF.O.B. OUR WAREHOUSE$9,950.00ALL MACHINE/EQUIPMENT ARE SUBJECT TO PRIOR SALE
