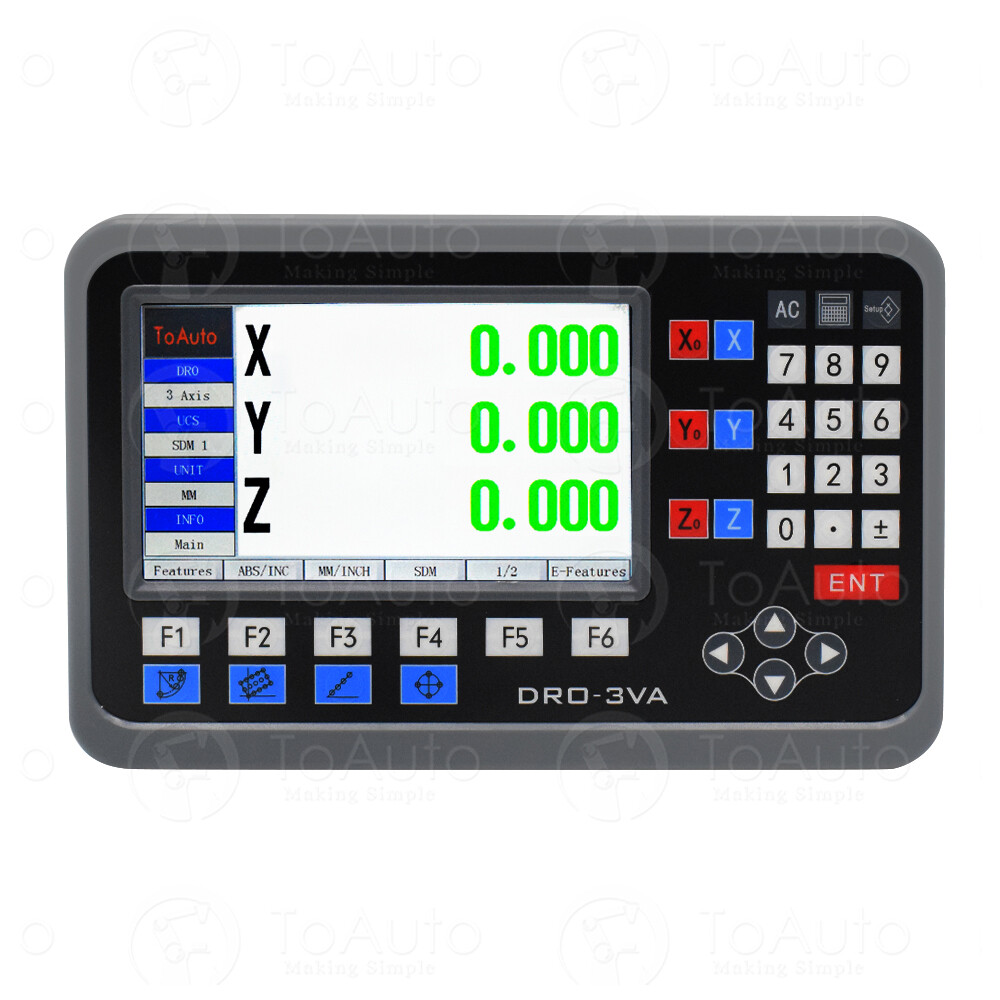

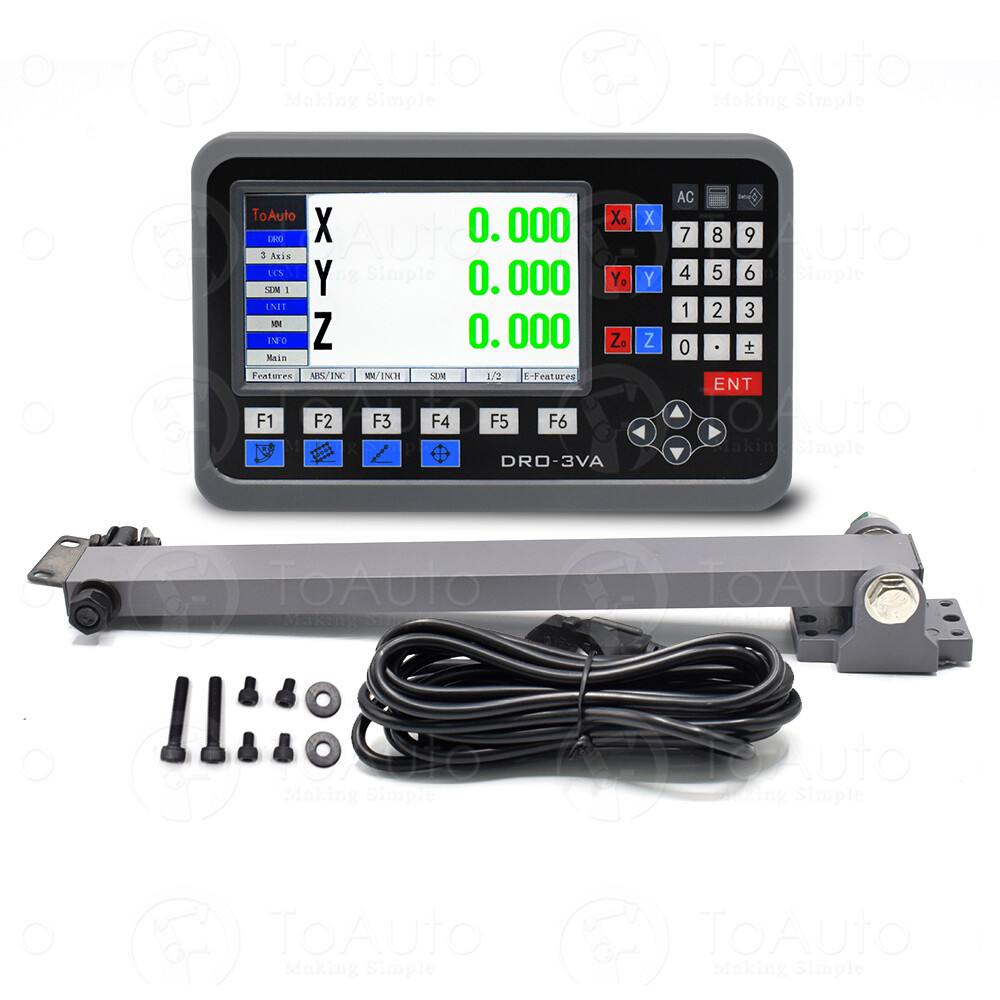

TOAUTO 18″ & 20″ & 40″ Linear Scale 3 Axis Digital Readout DRO Display Full Kit
Specifications
| Brand | TOAUTO |
| Type | Digital Readout |
| Axis | 3Axis |
| Compatible Equipment Type | Lathe |
| Power Consumption: | 15VA |

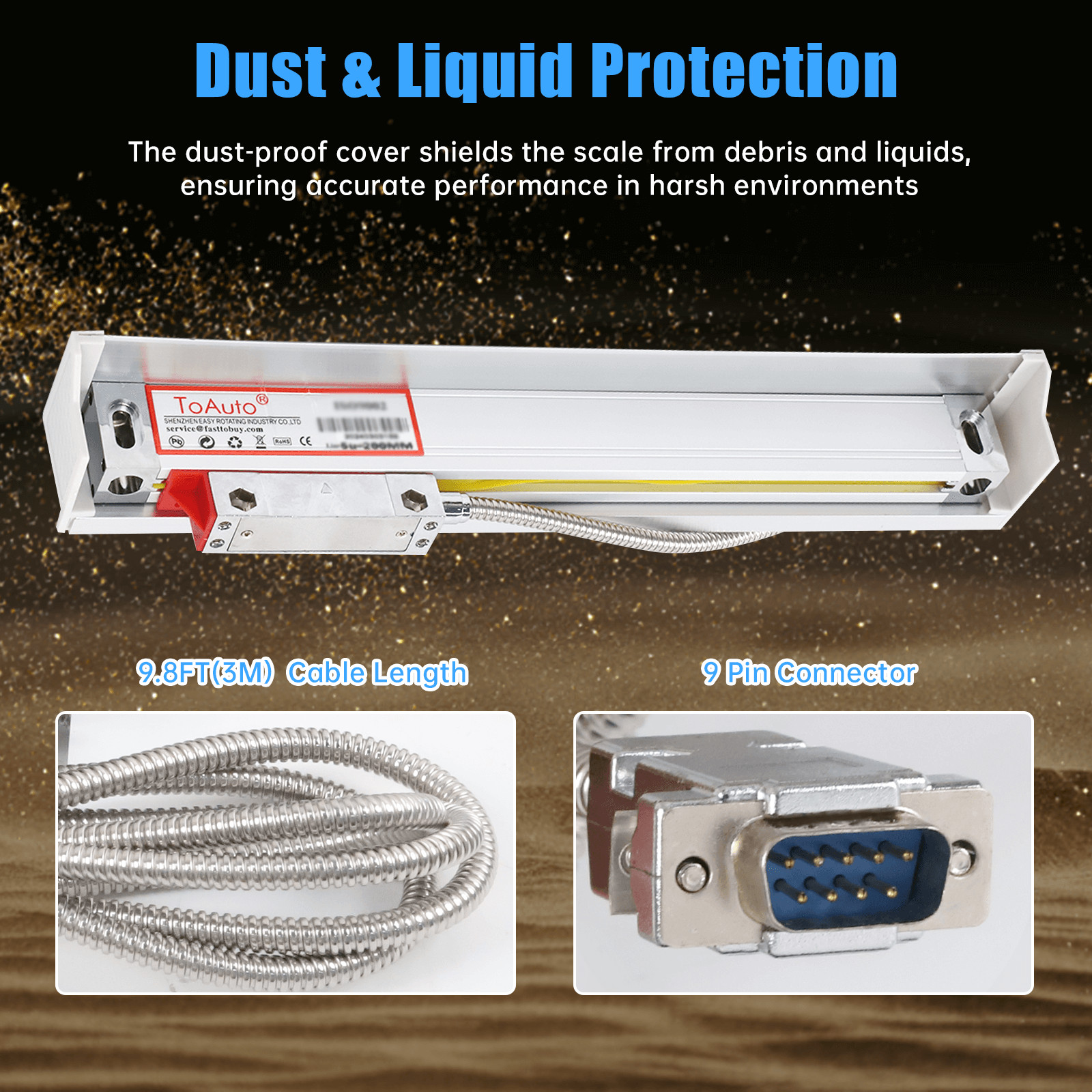

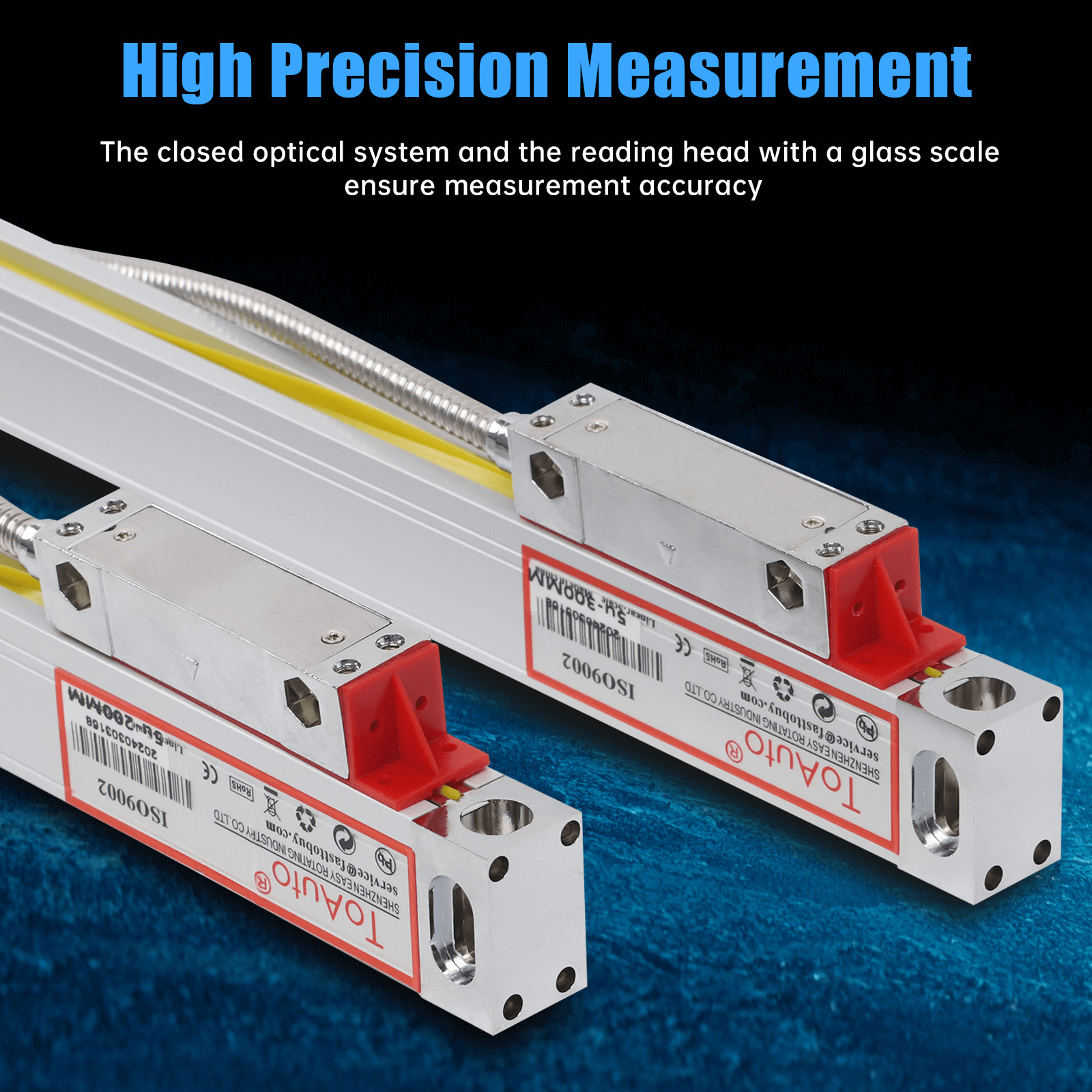

| Scale | Optical |
| Length Resolution: | 5µm |
| Machine Type | Milling Machine |
| Function | Drilling, Milling |
| Country Of Origin | China |
| Voltage | AC 80V-260V |
| Power Source | Electric |

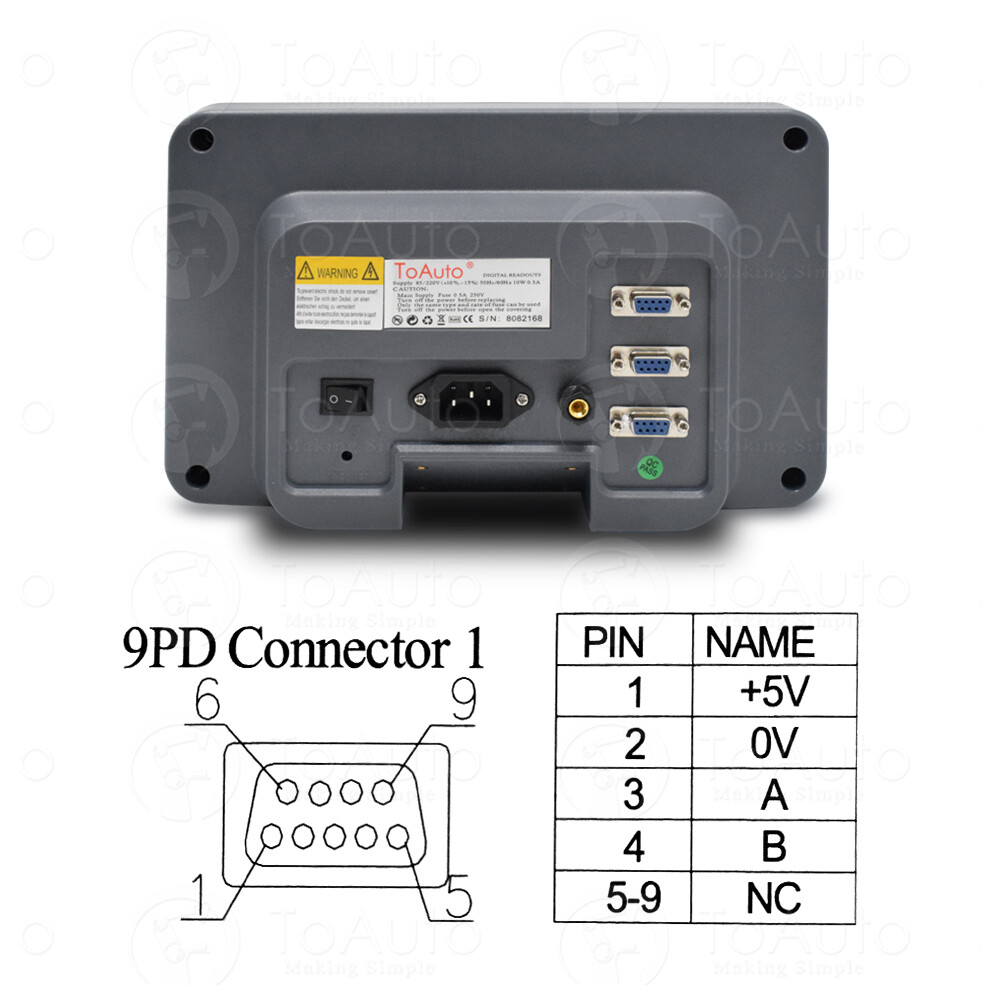

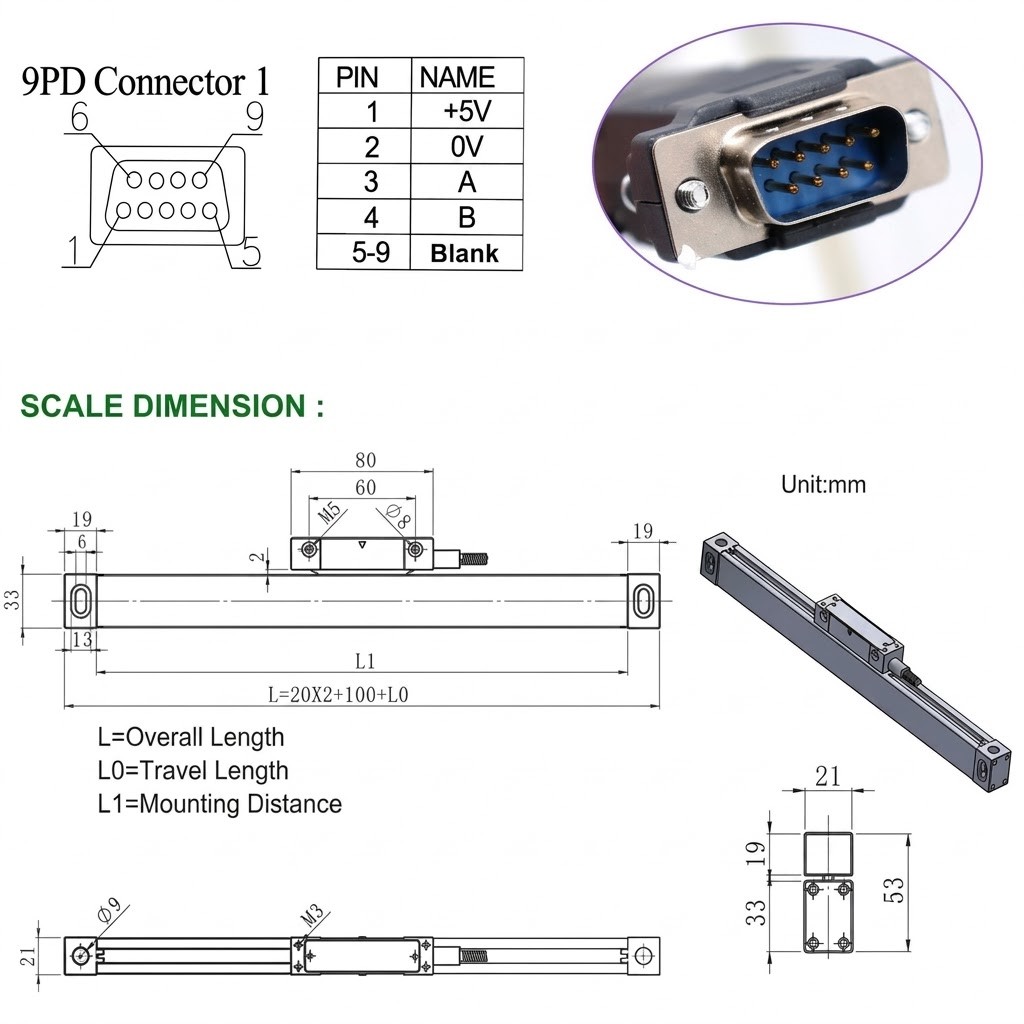

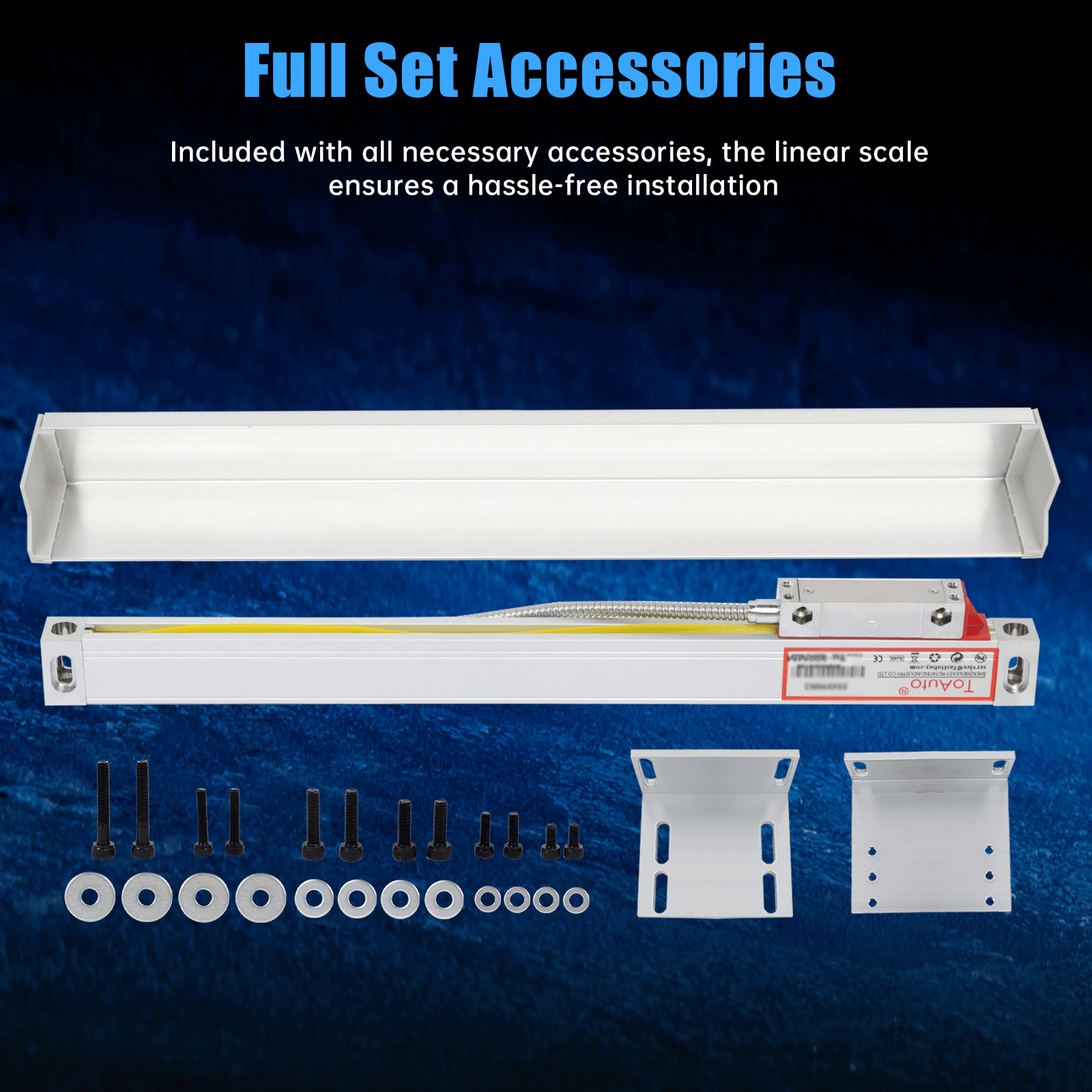

Supply Voltage range: AC 80V~220V; 50~60Hz Power consumption: 15VA Operating temperatur: 0~45 degree centigrade Storage temperatur: -30~70 degree centigrade Relative humidit: Less than 90% Readout allowable input signal: TTL square wave Allowable input signal frequency: Less than 5M Hz Max resolution of digital display length : 5µm (0.005mm/0.0002") Min resolution of digital display angle : 0.0001/pulse Cable length: 3-meter Dimensions: 283*178*70mm (11.2"*7"*2.8") Linear Scale communicate: DB9(RS232) Display language: English Backup data for power fail: power off Memory by E2PROM for ten years Lifetime: five million times Package Included : 1set 2Axis DRO+Linear Scale Kit Or 1set 3Axis DRO+Linear Scale Kit ( All the length are travel length ) 1pc English User Manual .
