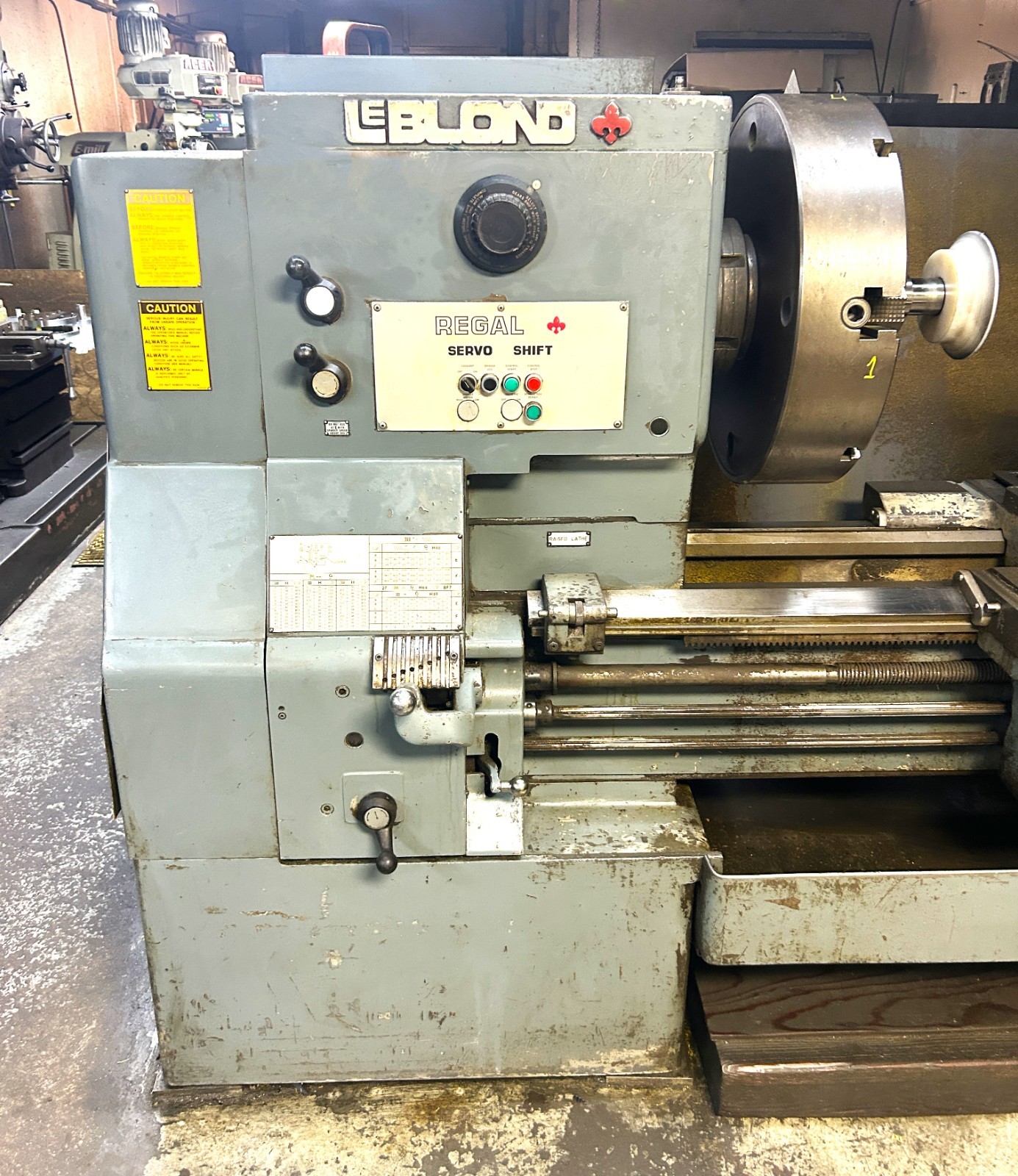

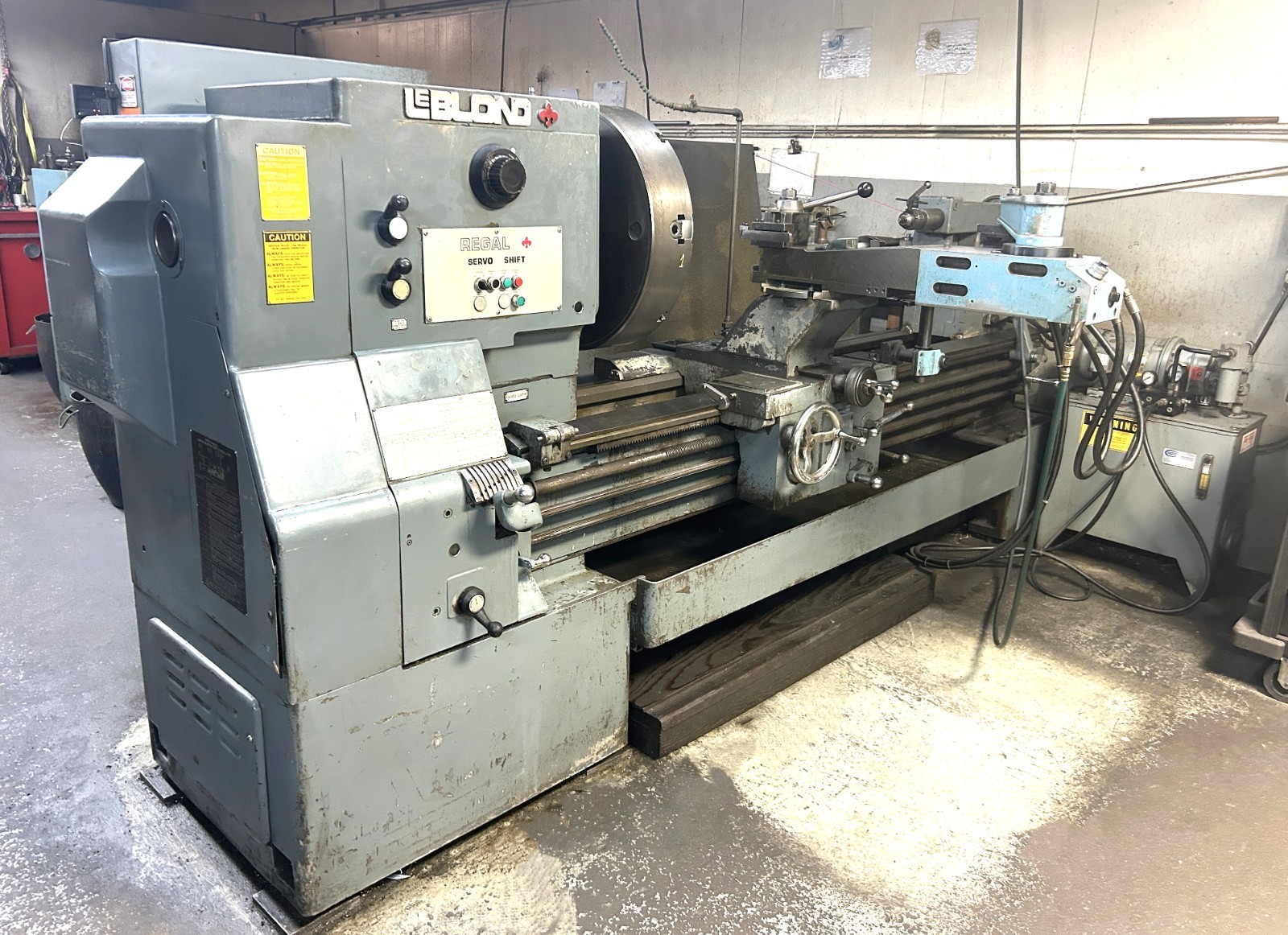

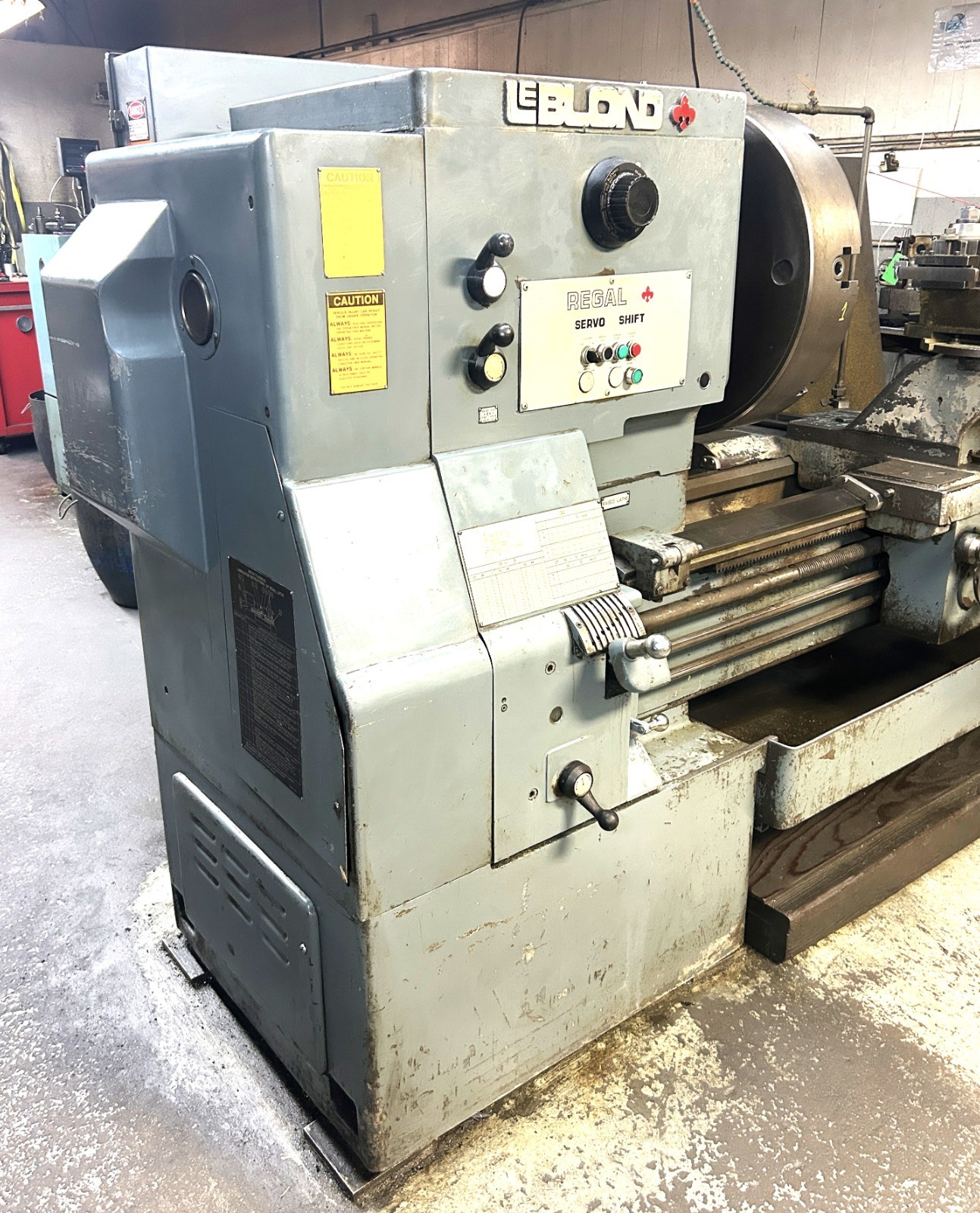

LeBlond Regal Servo Shift 36″ x 72″ Geared Head Hydraulic Tracing Lathe (1981)

LeBlond Regal Servo Shift 36″ x 72″ Geared Head Hydraulic Tracing Lathe (1981)

USD 29500.00 USD

SKU: 03LEHBdj

Brand: LeBlond

Condition: Used

Tags: 1981 22" 4 Jaw 35 in - 40 in Engine Lathe Geared Head LeBlond Three

Categories: Metalworking Equipment

Specifications

Brand	LeBlond
Chuck Size	22" 4 Jaw
Model Year	1981
Phase	Three
Machine Type	Engine Lathe
Swing Over Bed	35 in - 40 in

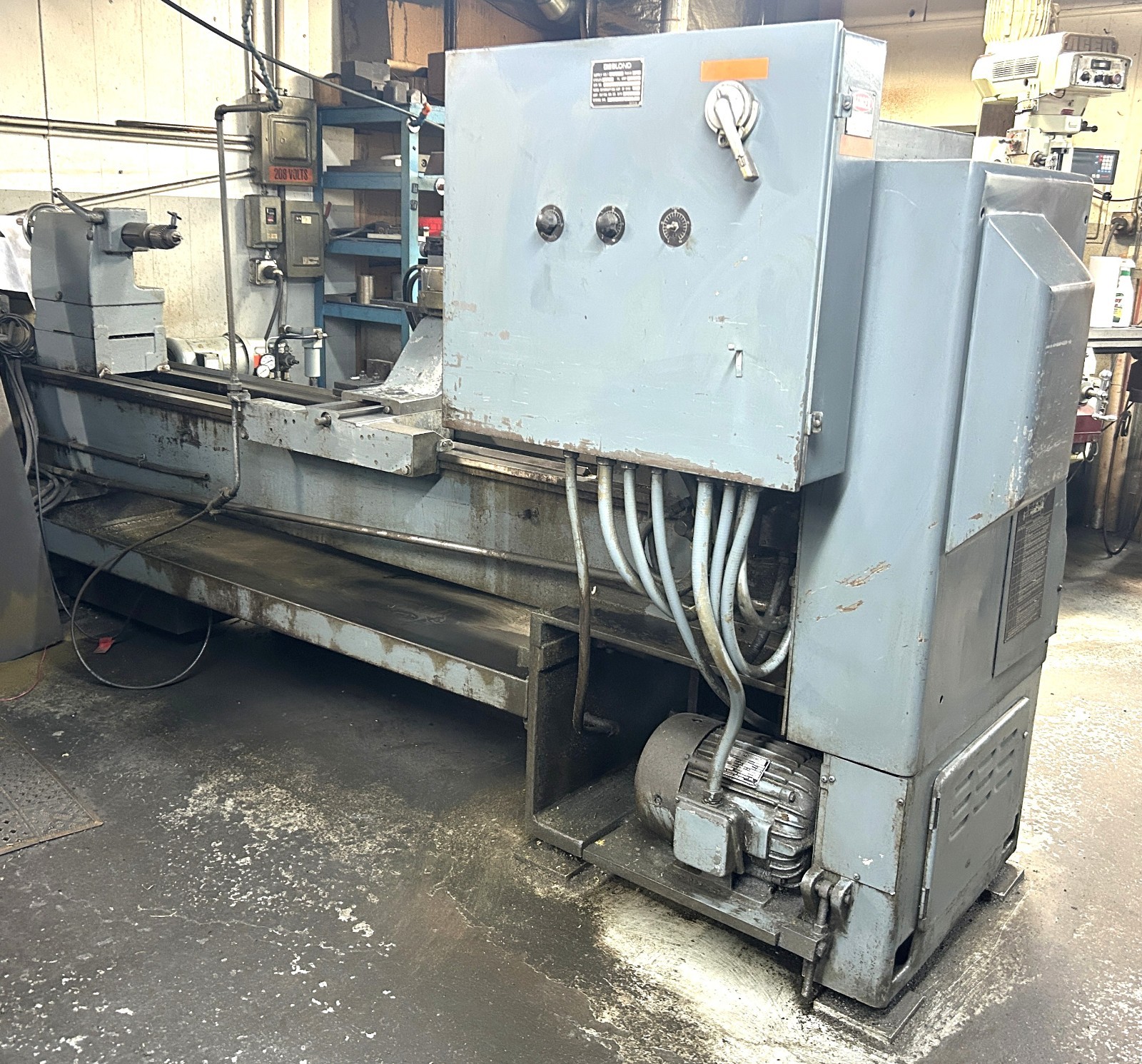

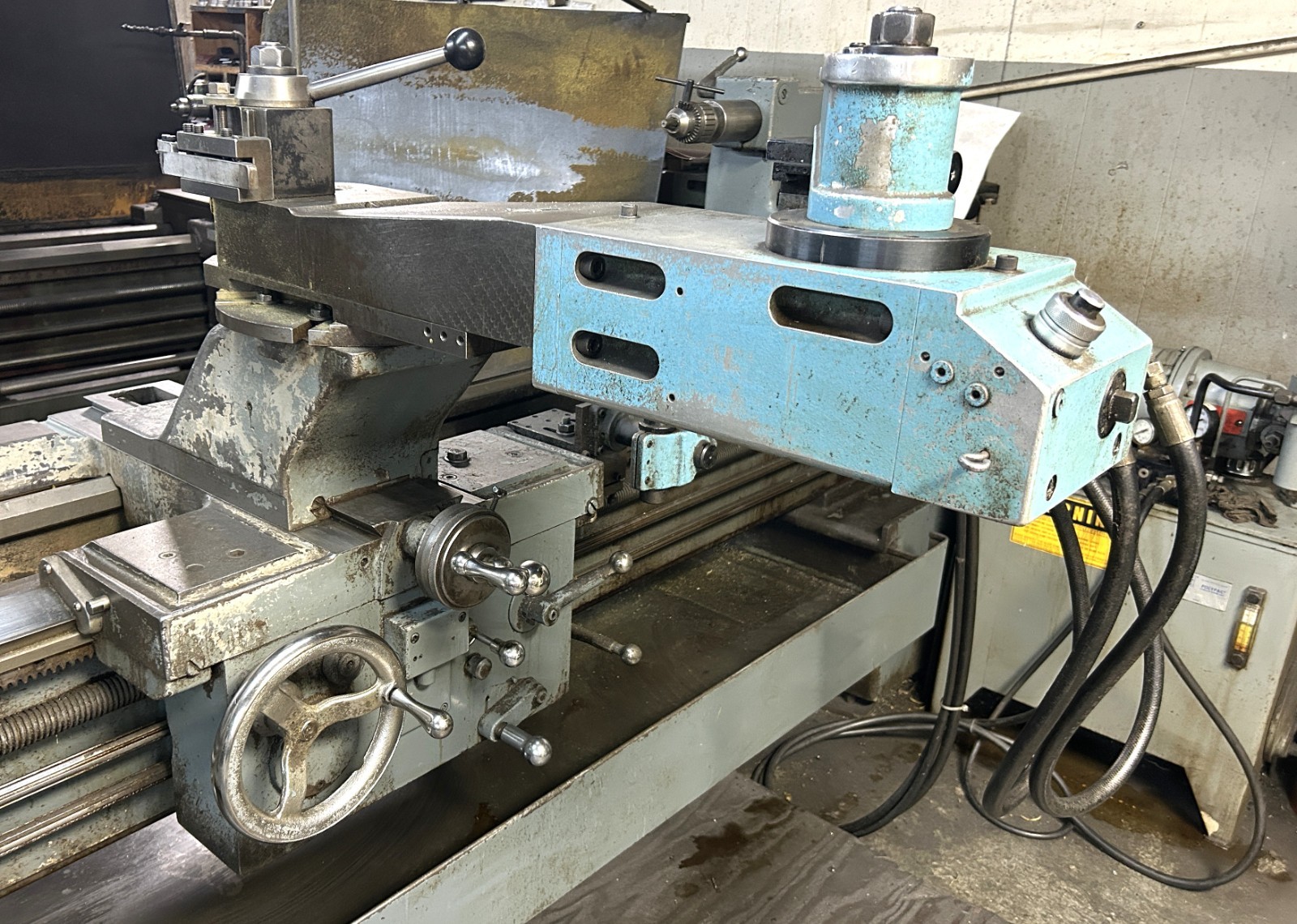

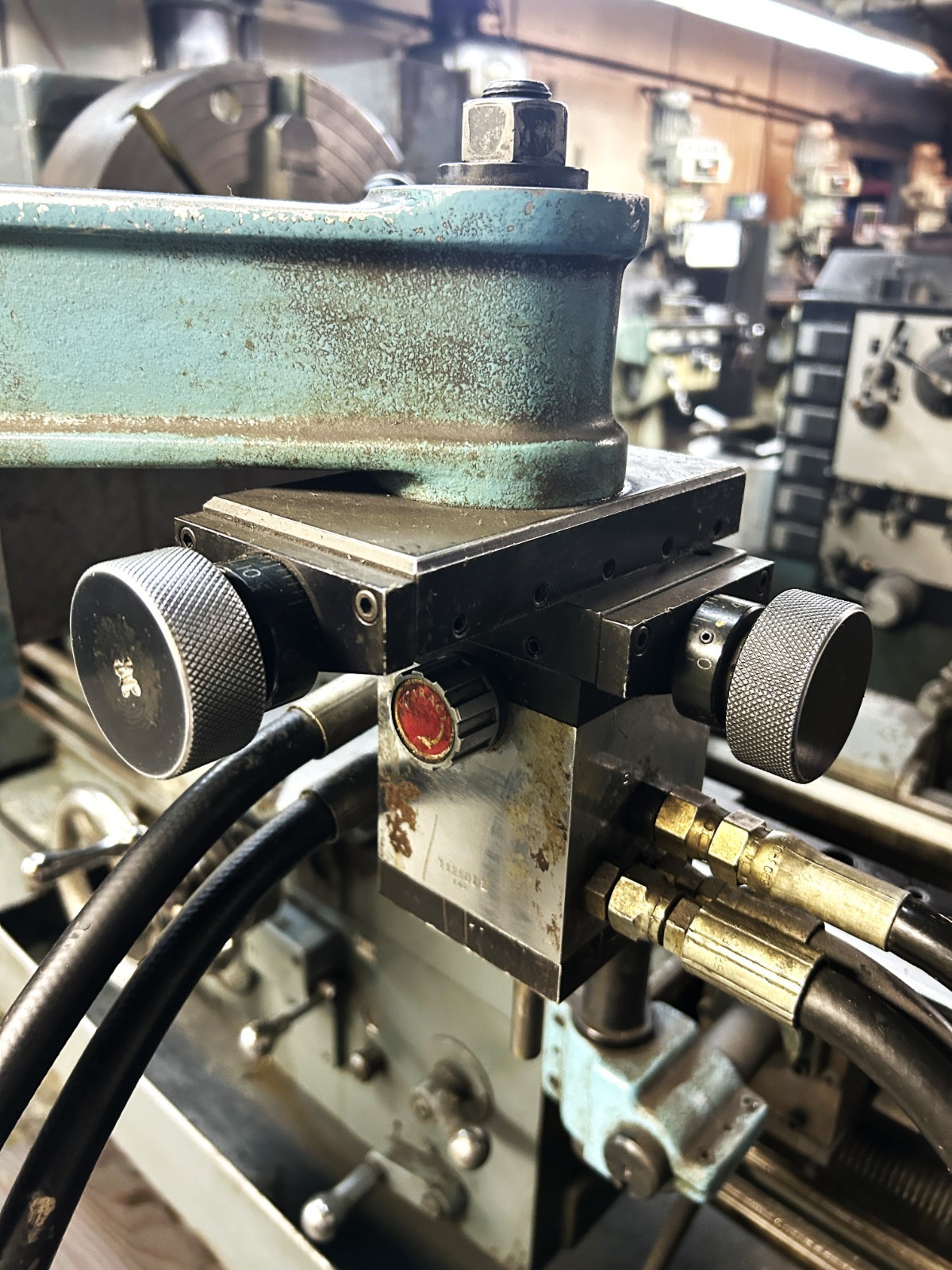

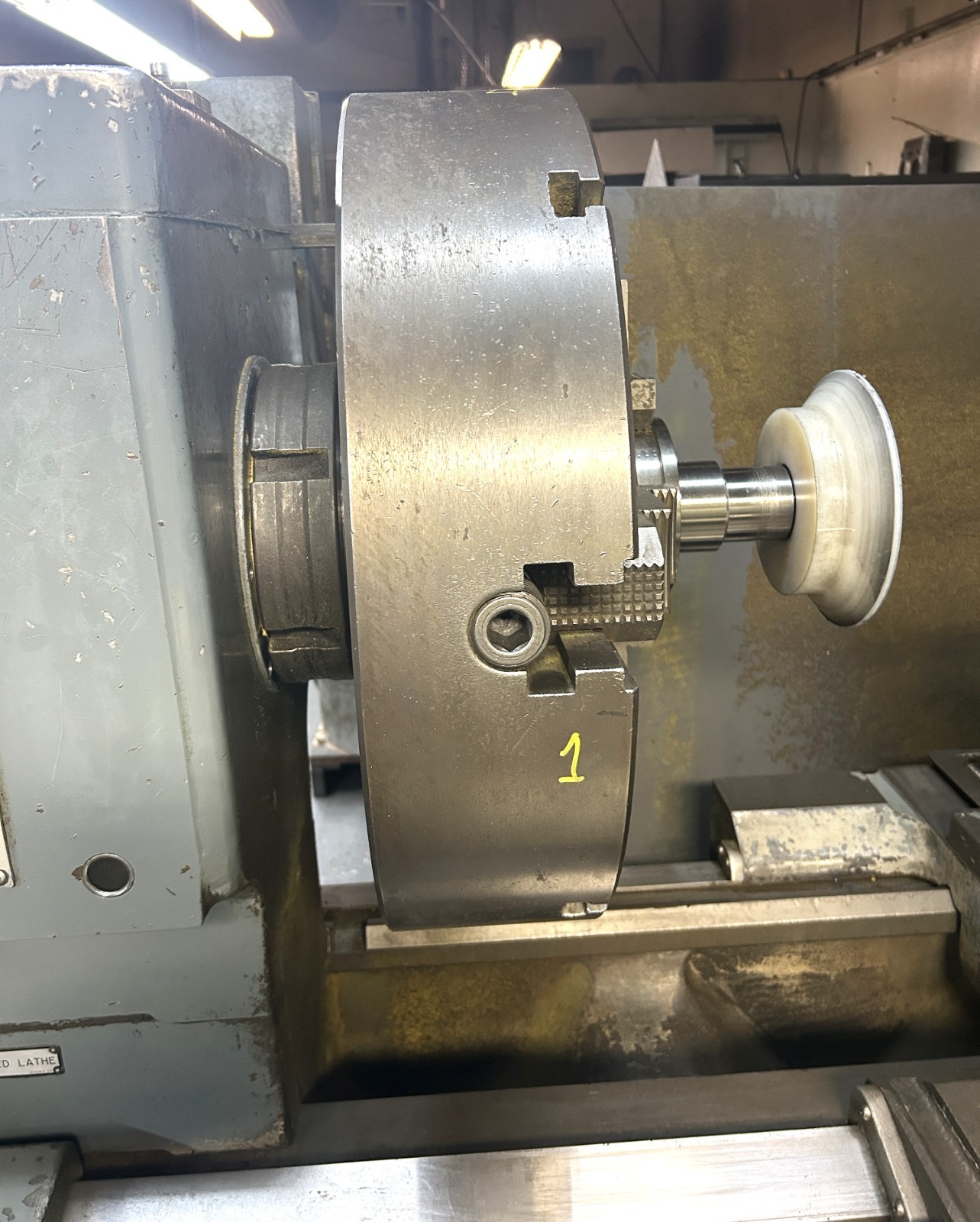

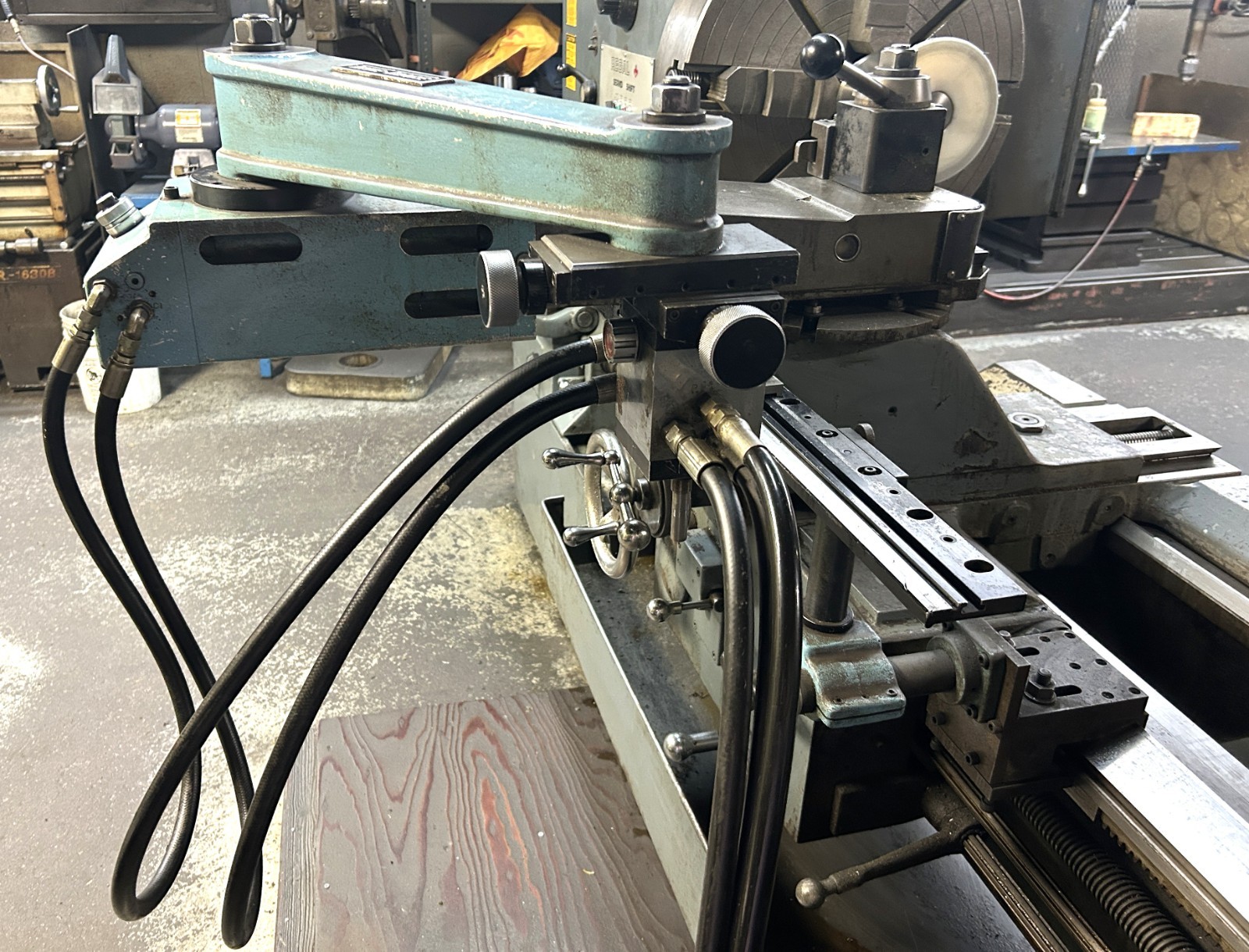

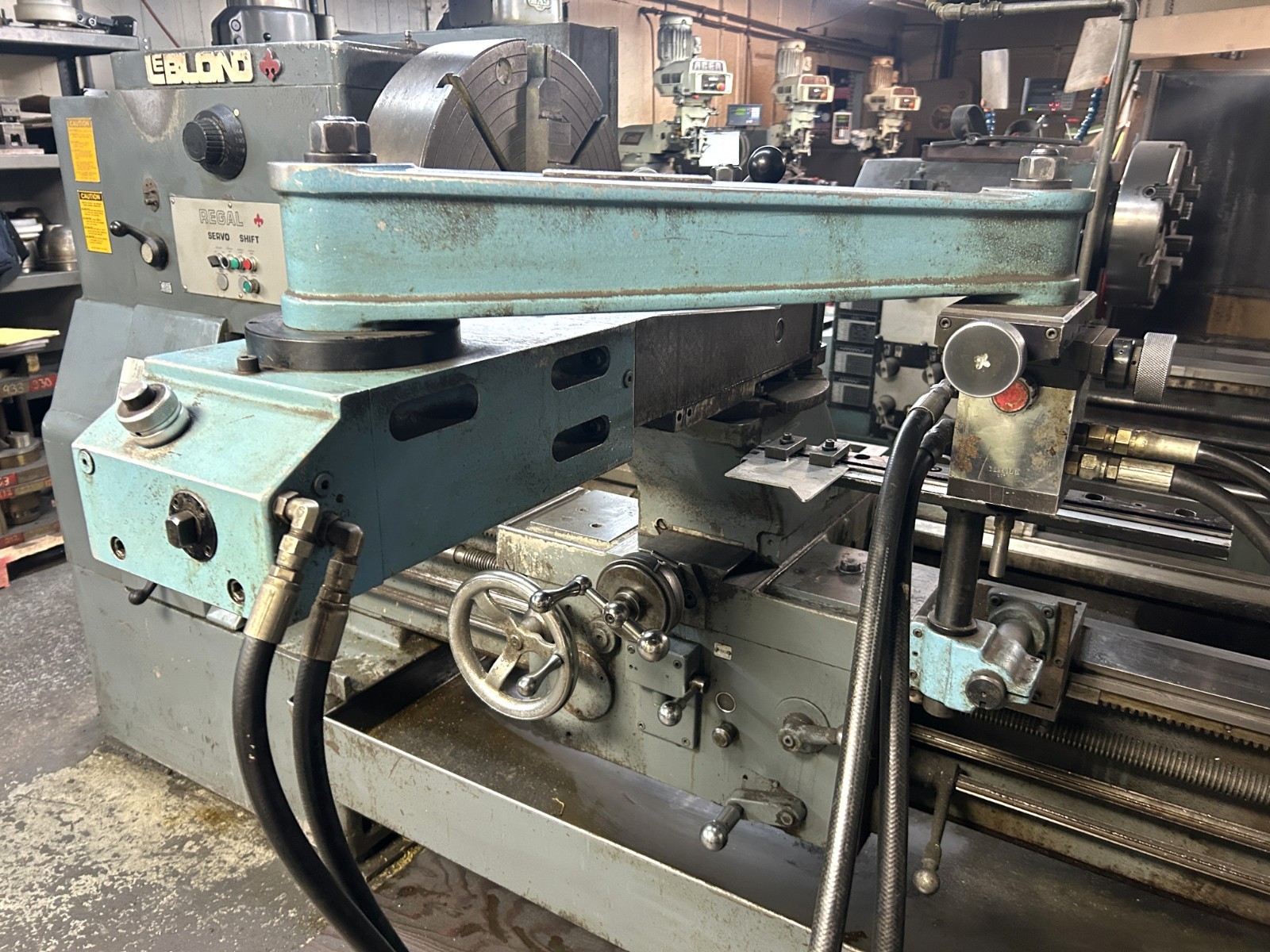

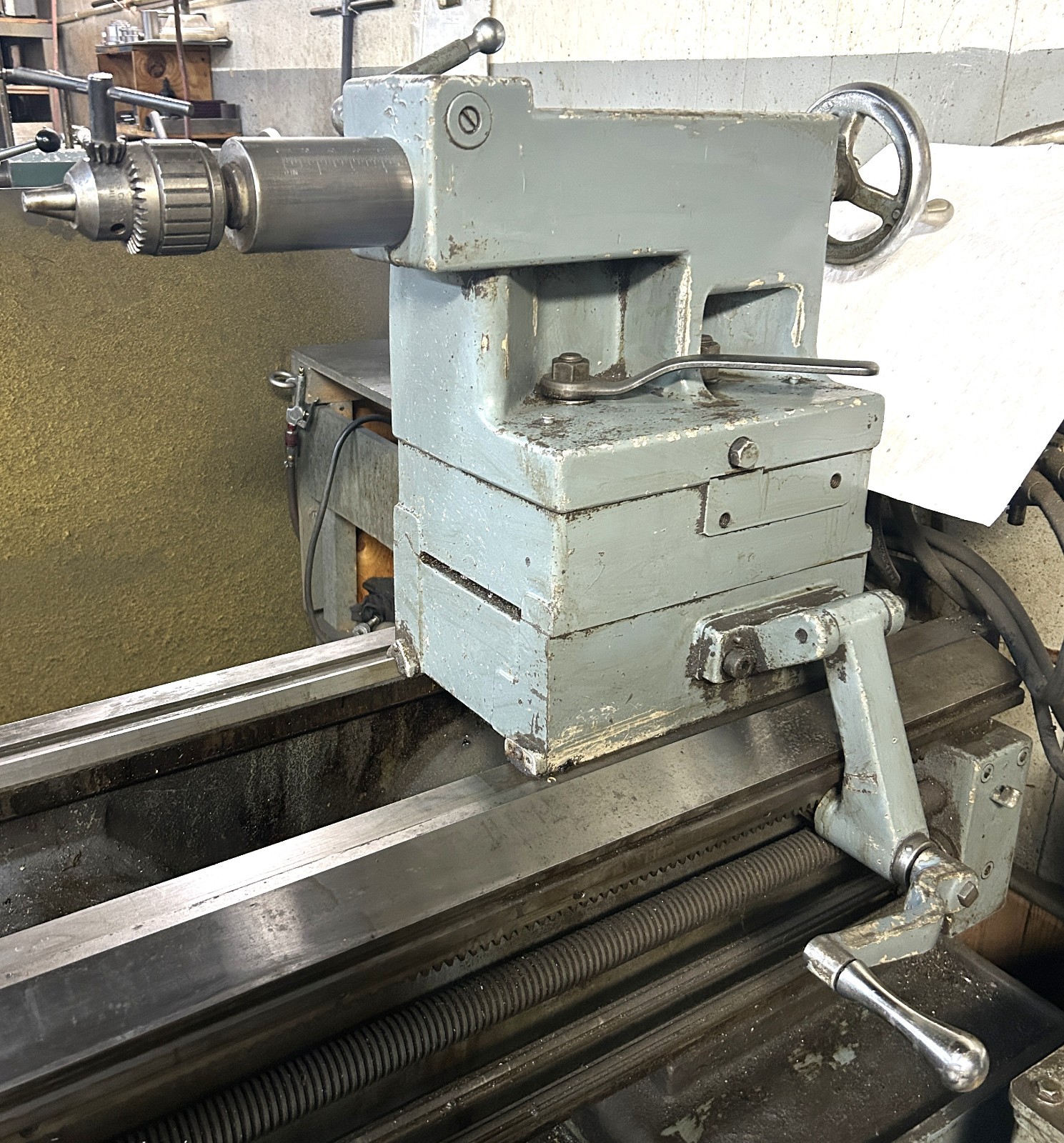

LeBlond Regal Servo Shift 36" x 72" Geared Head Hydraulic Tracing Lathe - S/N 7H1161 (New 1981) Spindle Speeds 70 - 1080 RPM, 28.5" Swing Over Cross-Slide, (48) Longitudinal Feeds .0036" - .205 IPR, (48) Inch Threading Range 2 - 112 TPI, (48) Metric Thread Range 0.25 - 14 MM, 3-1/16" Spindle Thru-Hole Bore, No.5MT Tailstock Taper, 7-1/2" Spindle Travel, L-2 Spindle Nose, 5" Factory Risers, 22" 4 Jaw Chuck, Micrometer Carriage Stop, Hardened Ways, Coolant, 10HP Motor, 208/3/60 Note: True Trace 3HP Hydraulic Tracing Unit being offered with machine or separately !!! The Pricing Is $29,500 with Tracer or $26,500 With Out or Best Offer !
