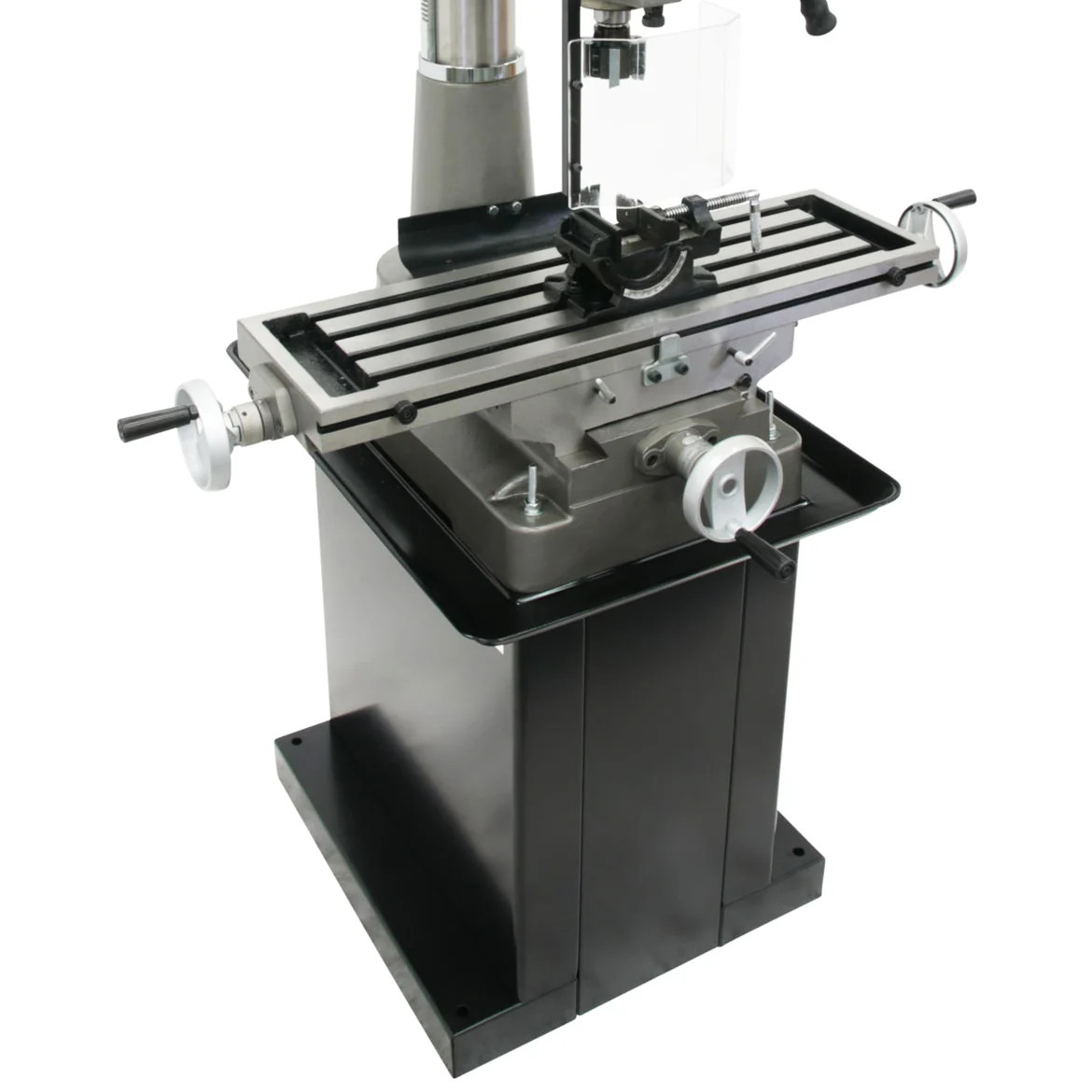

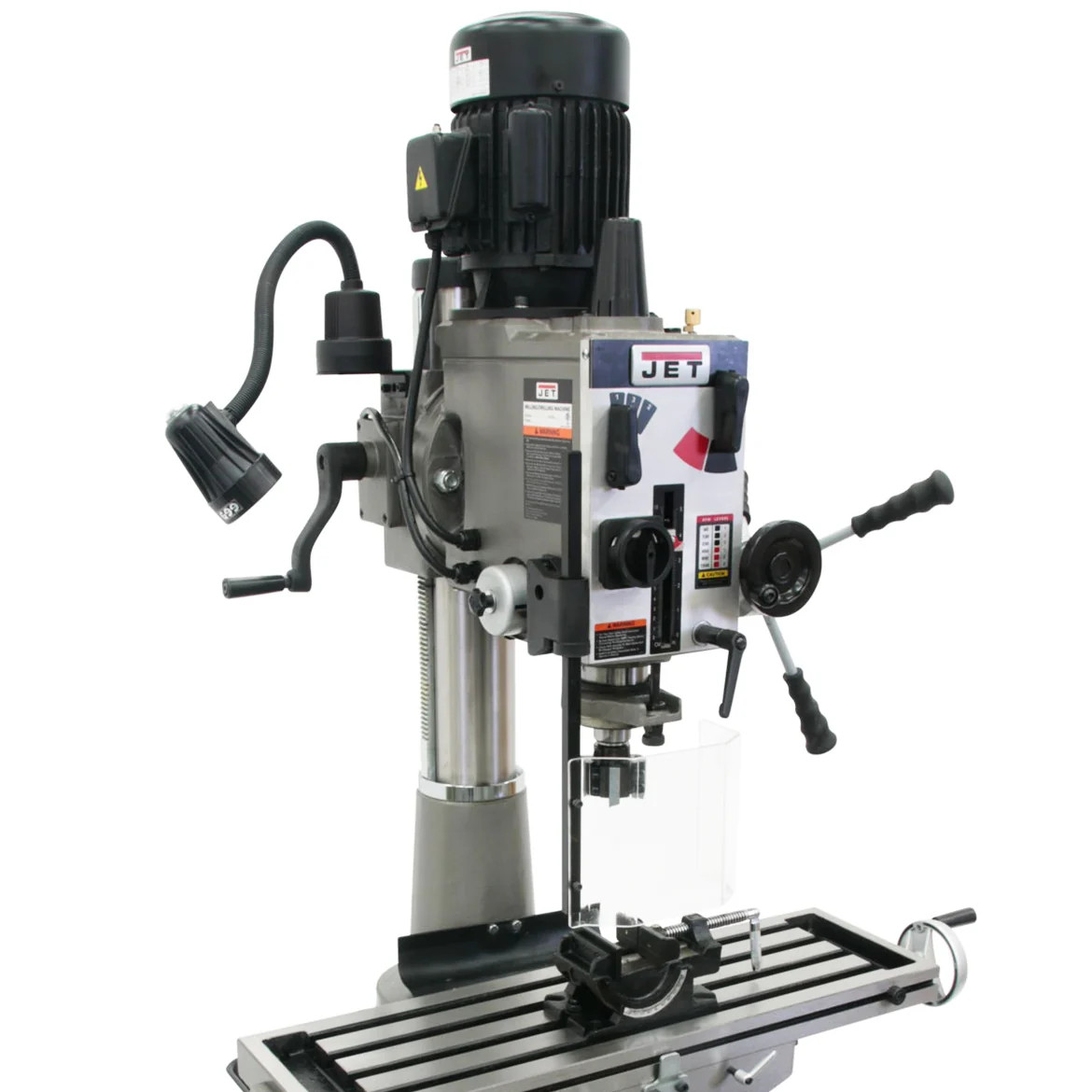

JET JMD-40GH 1-1/2-Hp 115/230V Round Column Geared Head Mill Drill
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Type | Drill Presses |
| EAN | 731325512830 |
| Power Source | Electric |
| MPN | 351040 |
| Brand | JET |
| Table Length | 32.25 in |
| Spindle Taper | R-8 |
| Table Width | 9.5 in |
| Function | Drilling |
| Control | Single |
| Voltage | 230 V |
| Spindle Horsepower | 11 hp |
| Machine Type | Mill Drill |
| Max Spindle Speed (RPM) | 1550 |
| Model | JMD-40GH |
Engineered for precision drilling, the heavy-duty JMD-40GH Round Column Geared Head Mill Drill is loaded with intuitive features for maximum accuracy. Features Heavy-duty design allows for a variety of precision drilling applications Full power to the cutting tools through 6 speed geared head CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified Spindle guard Work Lamp Calibrated fine down feed built in Easy to read internal depth gauge Head tilts left and right 90-Degrees Rapid spindle speed changes through quick-select gear shift levers Forward/reverse switch Milling table allows for movement R8 spindle allows use of all mill tooling What's in The Box 1-1/2-Inch Geared Head Mill/Drill Owner's Manual Warranty 2-Year Limited Factory Warranty 30 Day Satisfaction Guaranteed Specifications Sku 351040 Brand Jet Voltage 115/230v Horsepower 1-1/2 Hp Phase 1-Phase Drilling Capacity 1-1/2 in. Mild Steel Face Mill Capacity 4 in. End Mill Capacity 3/4 in. Swing 21 in. Max. Distance Spindle to Table 15-3/4 in. Spindle Taper R-8 in. x tpi Spindle Travel 5 in. Quill Diameter 4-1/2 in. Number of Spindle Speeds 6 Range of Spindle Speed 65, 130, 220, 480, 925, and 1,550 Rpm Table Size (L x W) 32-1/4 in. x 9-1/2 in. Table Longitudinal Travel 20-1/2 in. T-Slots Number and Size 4 and 5 in. x 1 in. Base Dimensions 24-1/4 in. x 15-15/16 Length 28 in. Width 39-1/4 in. Height 42-1/2 in. Product Weight 628 lbs. Shipping Weight 628 lbs. why buy from us? secure & hassle-free shopping All items are covered by manufacturer warranty. fast shipping Most orders delivered in 1-3 business days. customer service Call us toll free: 1-800-629-3325 satisfaction guaranteed All our sales are backed by a 30-day satisfaction guarantee.
