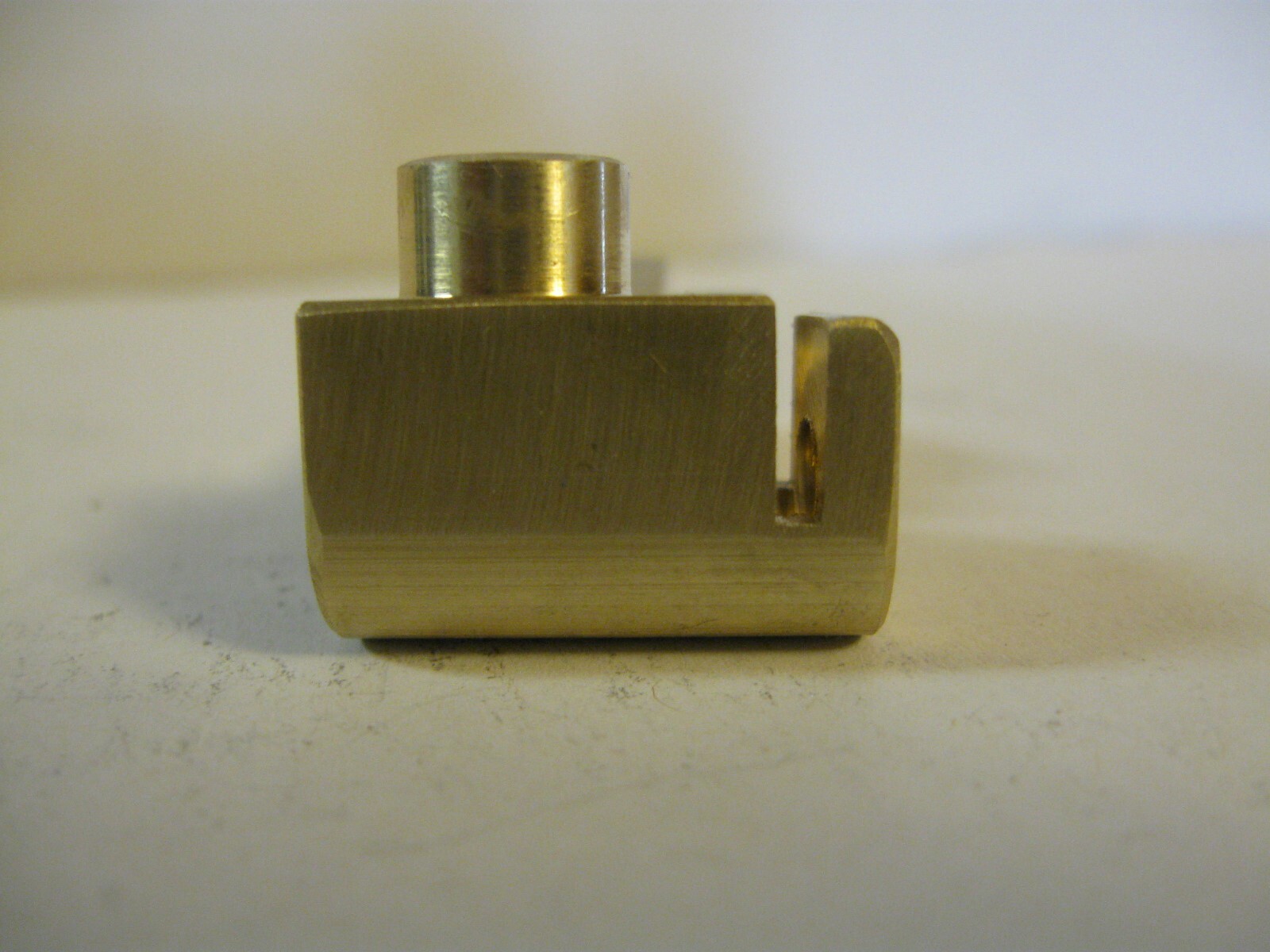

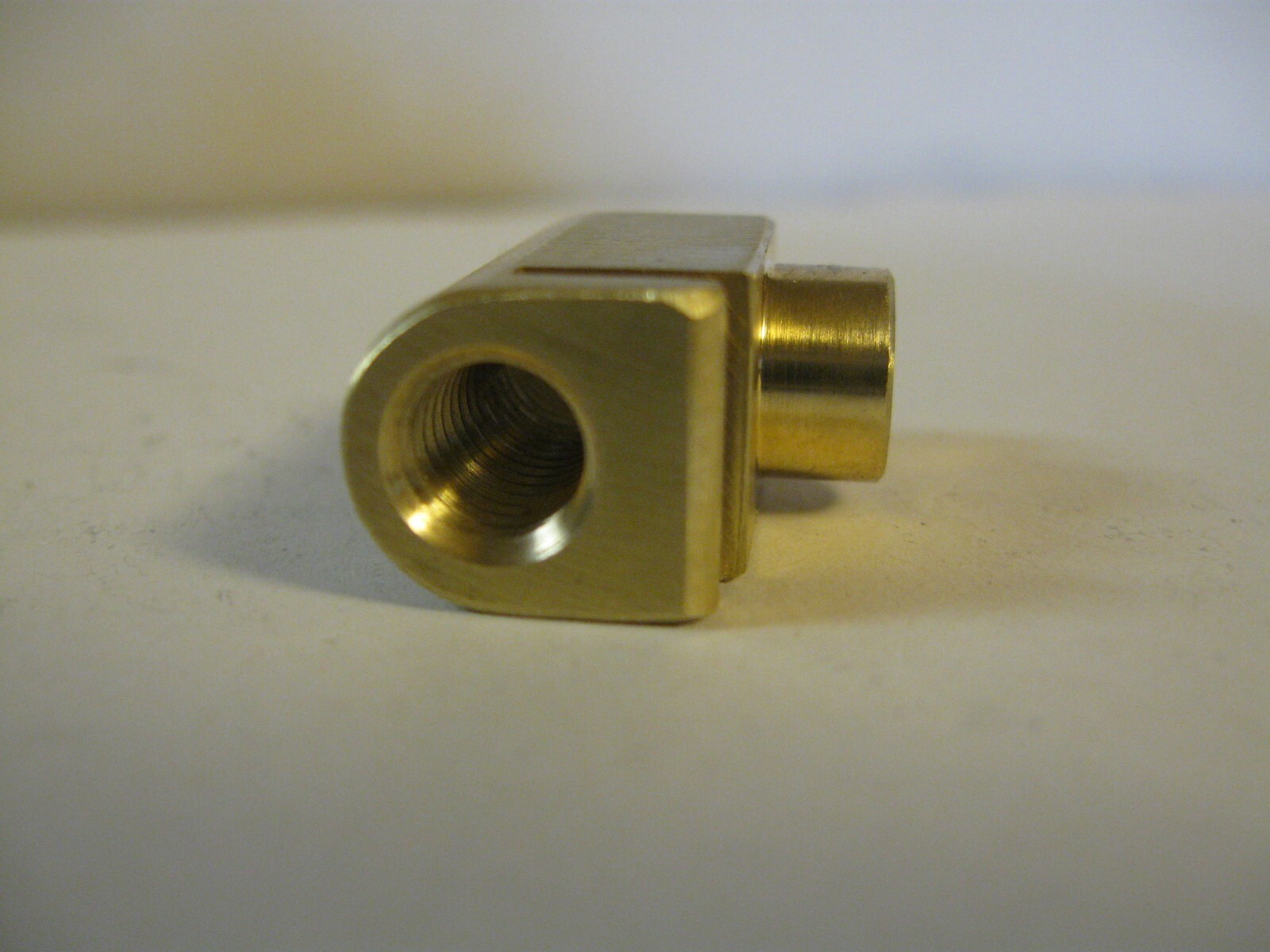

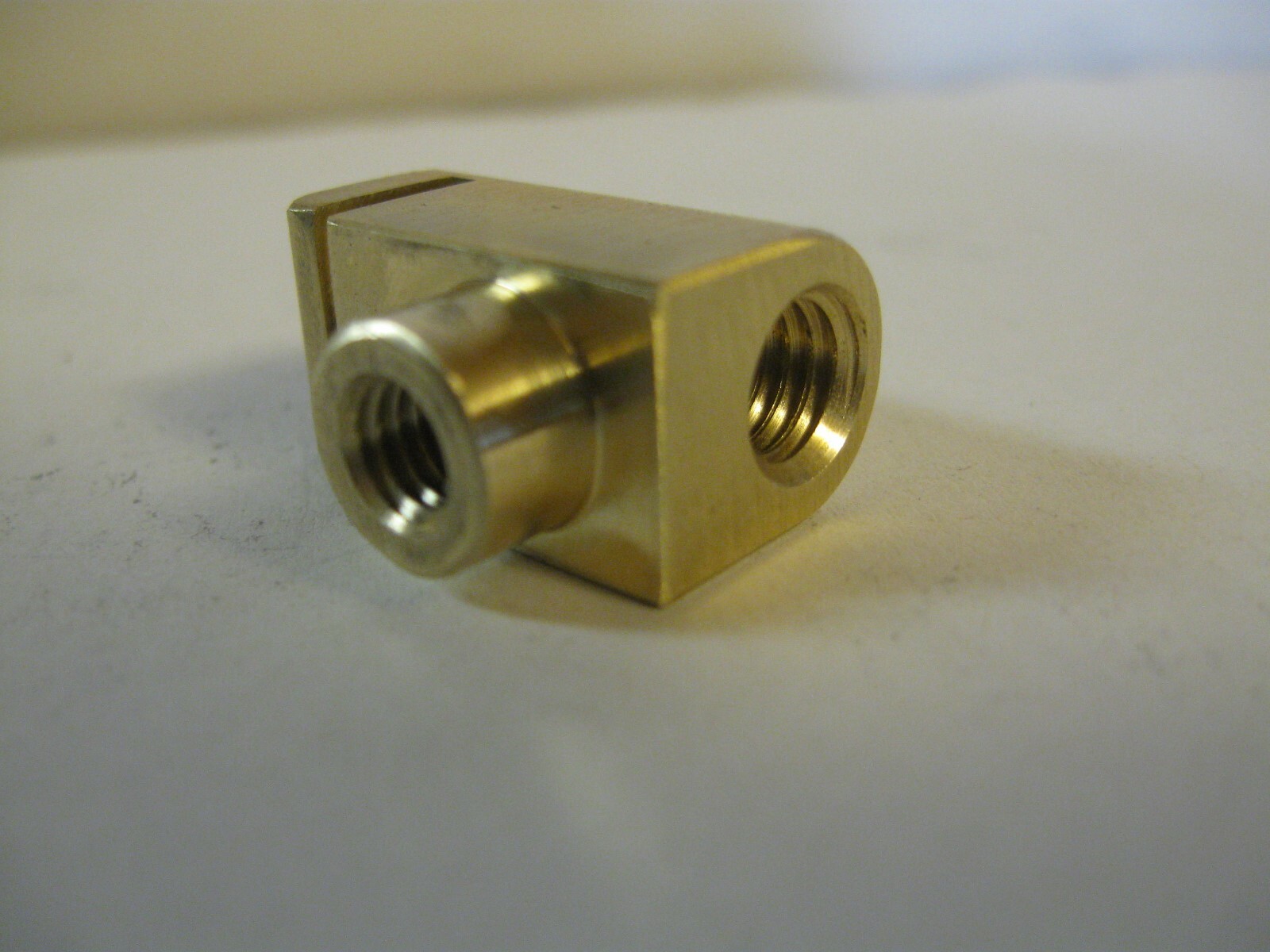

HF, Enco, Grizzly, Jet 9″ x 20″ Lathe Cross Feed Nut
Specifications
| Restocking Fee | 10% |
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Shop Made |
| Chuck Size | 9 in |
| Control | Manual |
| Machine Type | Engine Lathe |
| Model | Shop Made |
| Country Of Manufacture | United States |
| MPN | 4J 3004 804 5036 |
| Swing Over Bed | Less than 10 in |
Crossfeed Nut for the Asian 9x20 and 9x18 lathes.Replacement for the following:Central Machinery 4JChiuting 3004 Grizzly 804Enco 110-0815, 110-0816, 110-0817, 110-0818, 110-0820, 45290Jet 5036 Please check the size of your screw before purchasing, it is a M8-1.25 Left Hand Thread.Mounting post is 10mm dia. and tapped for a M6-1.0 mounting screw.This is the nut that is used on the screw that controls diameter, commonly called the "X" axis.Made from 360 Brass. Check out my other listings for more Atlas, Craftsman, Logan, Rockwell, Clausing and South Bend Lathe parts!Thank you for supporting my local small business - all items are made right here in Berrien Springs Michigan since 2004.When you buy American, you help to keep local businesses strong and support the American economy at the same time.Stop buying items made in foreign countries! You are sending money to them! Support the American economy!
