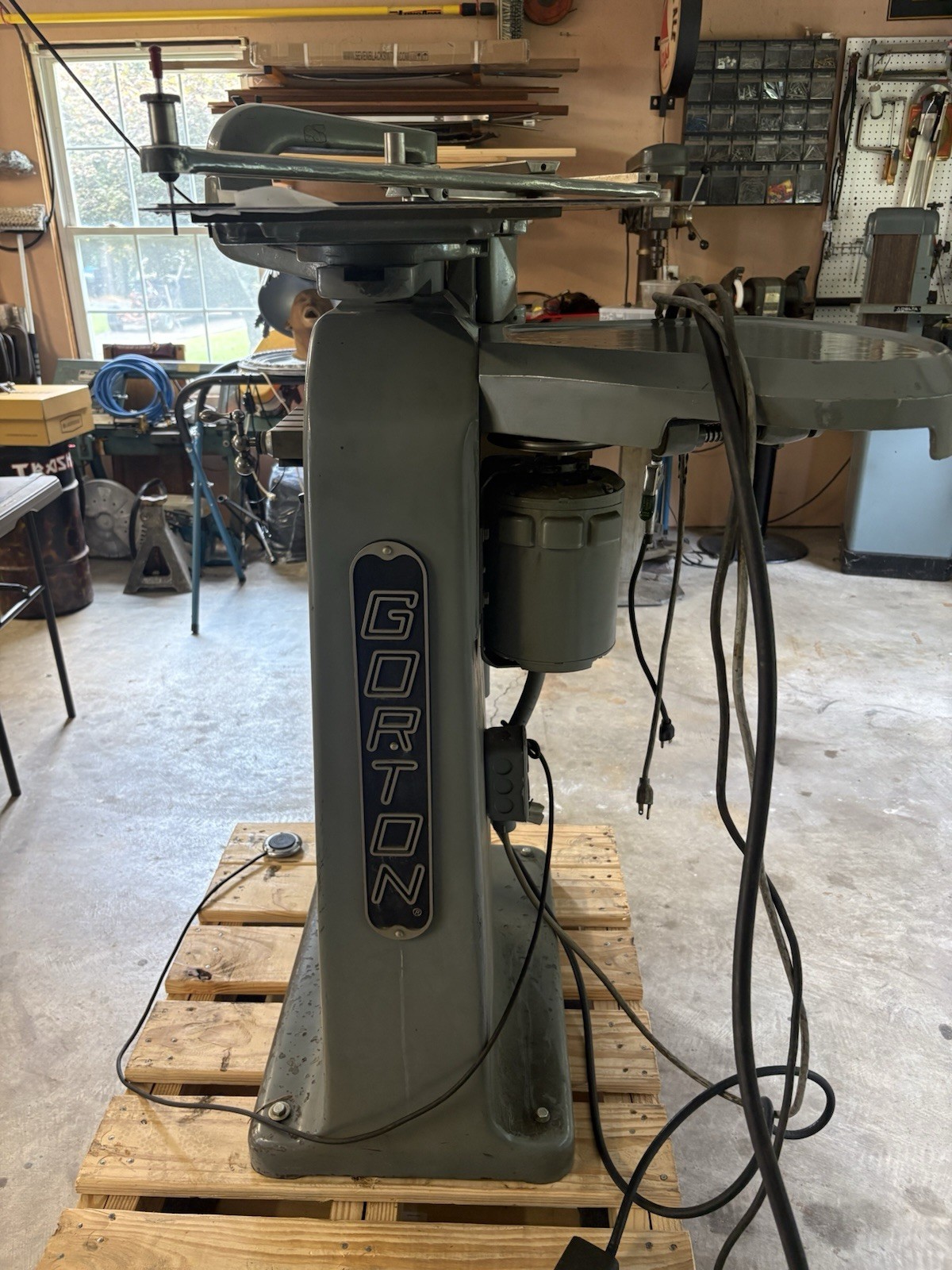

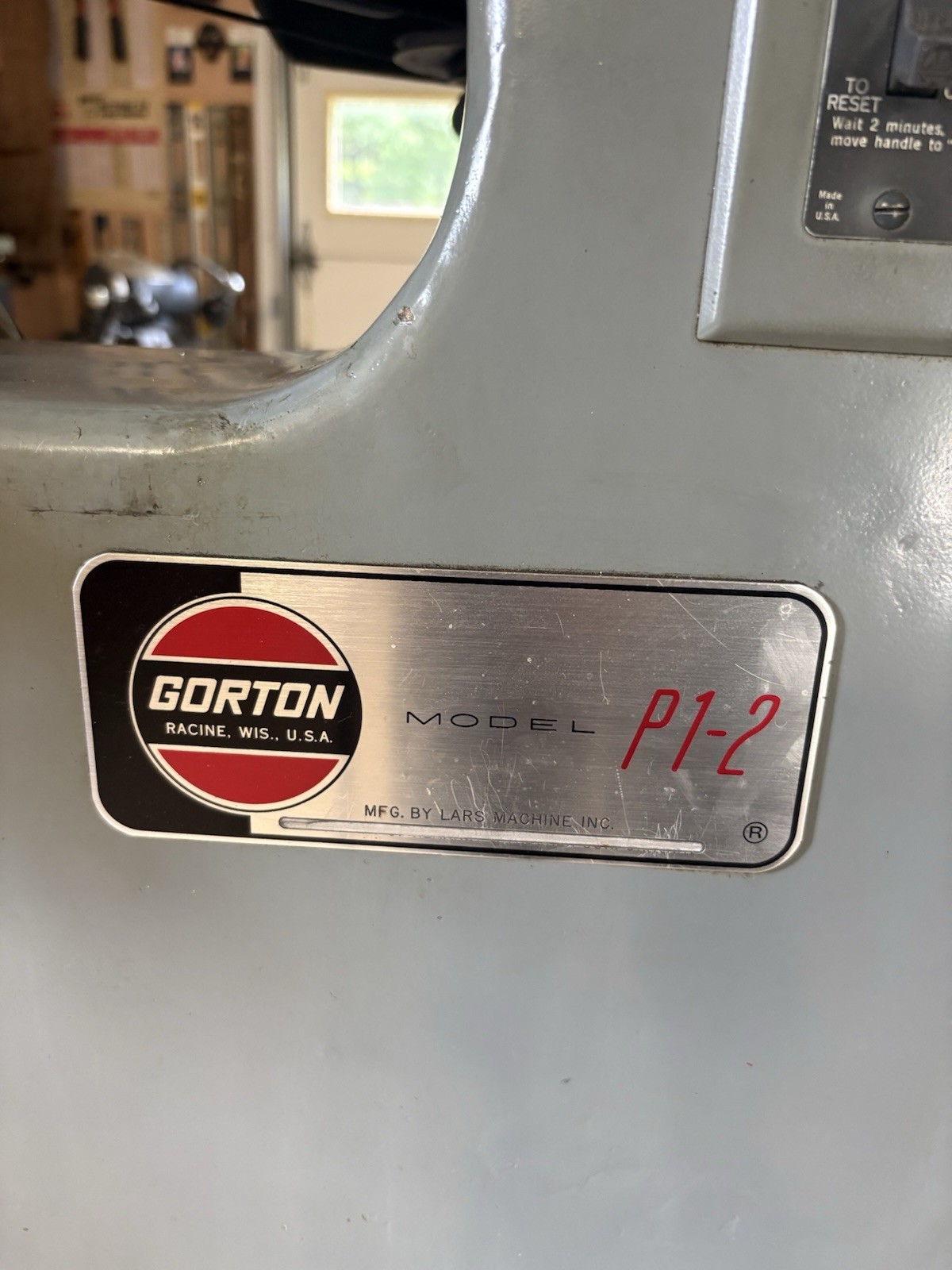

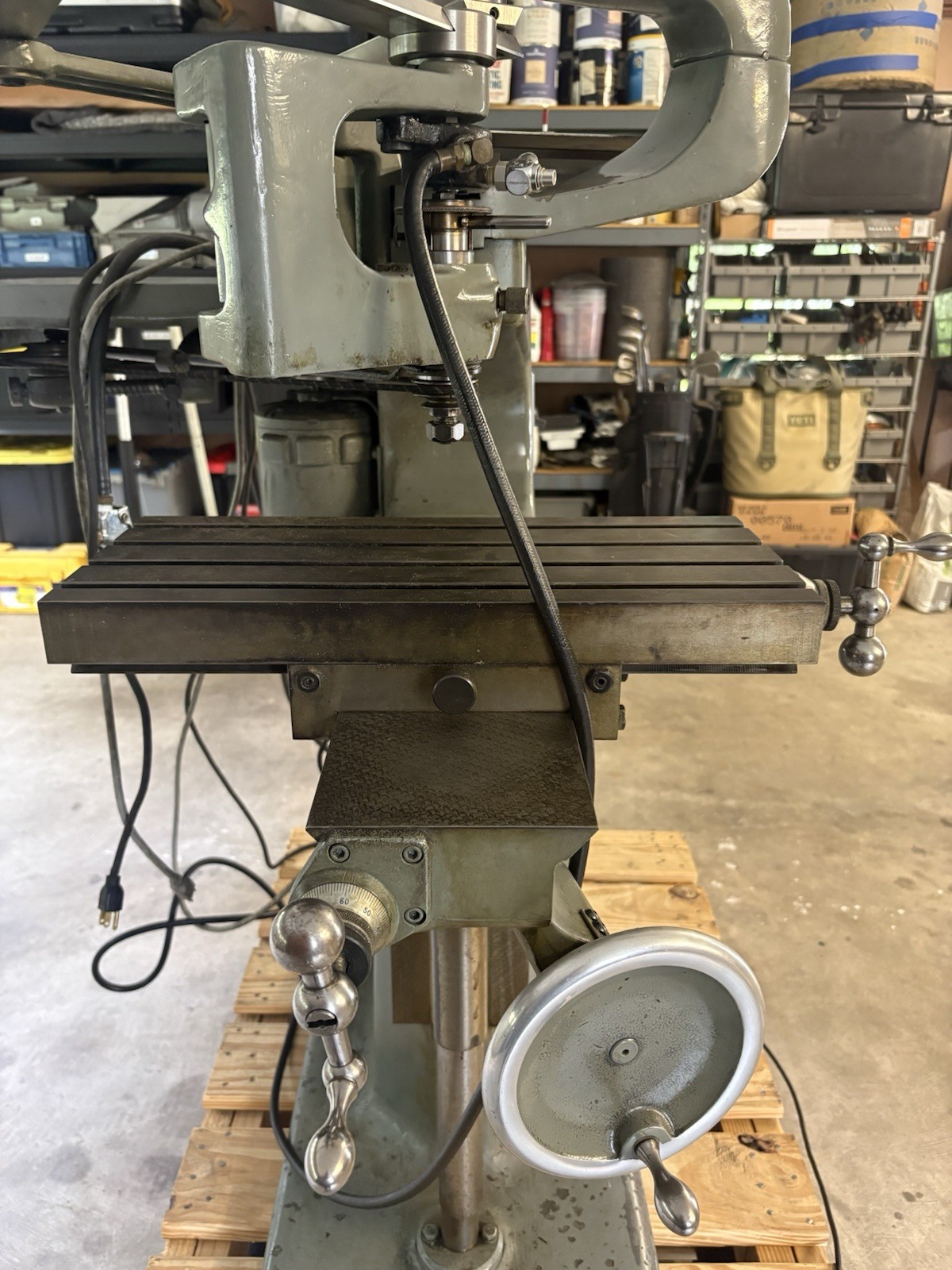

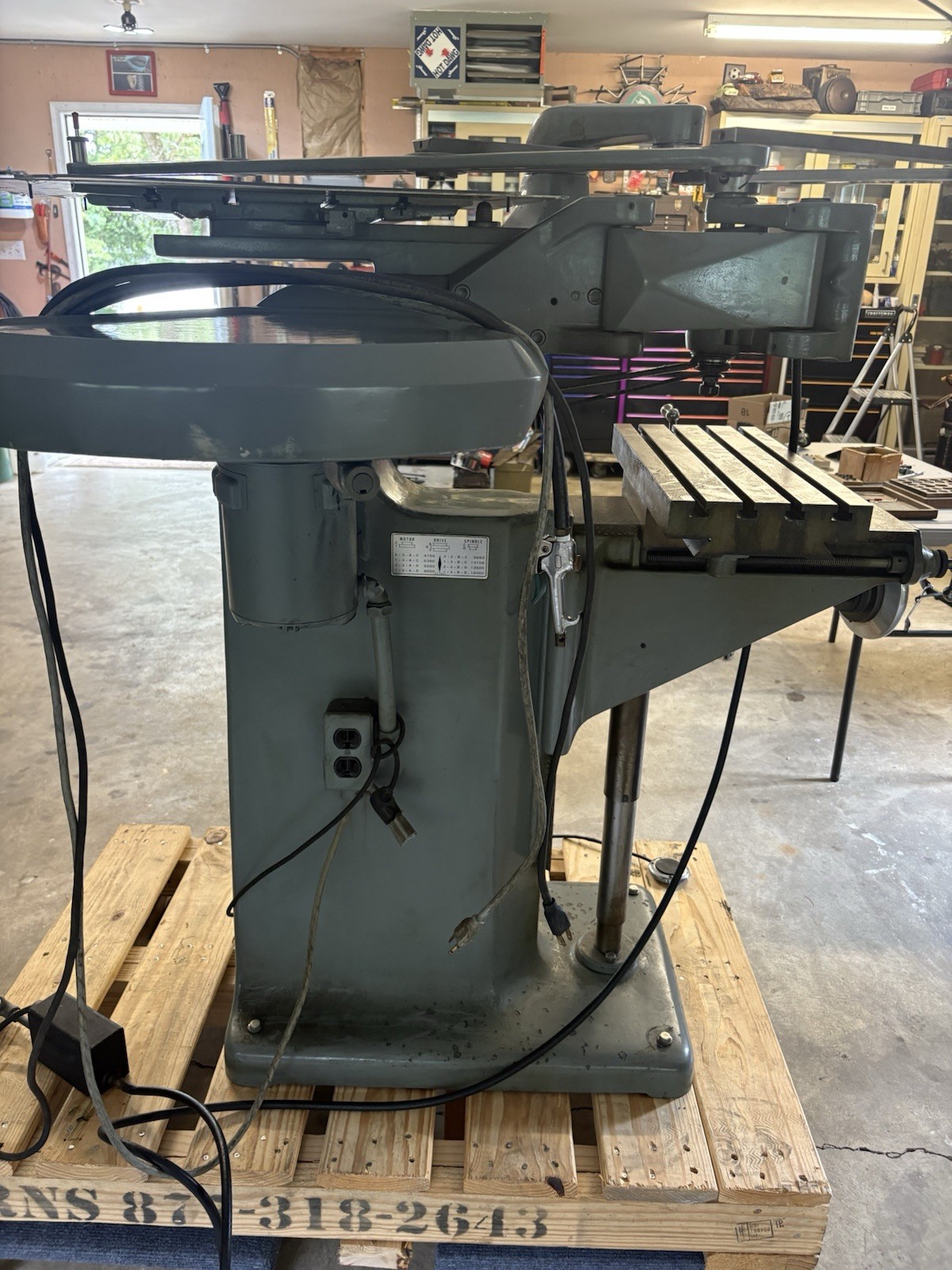

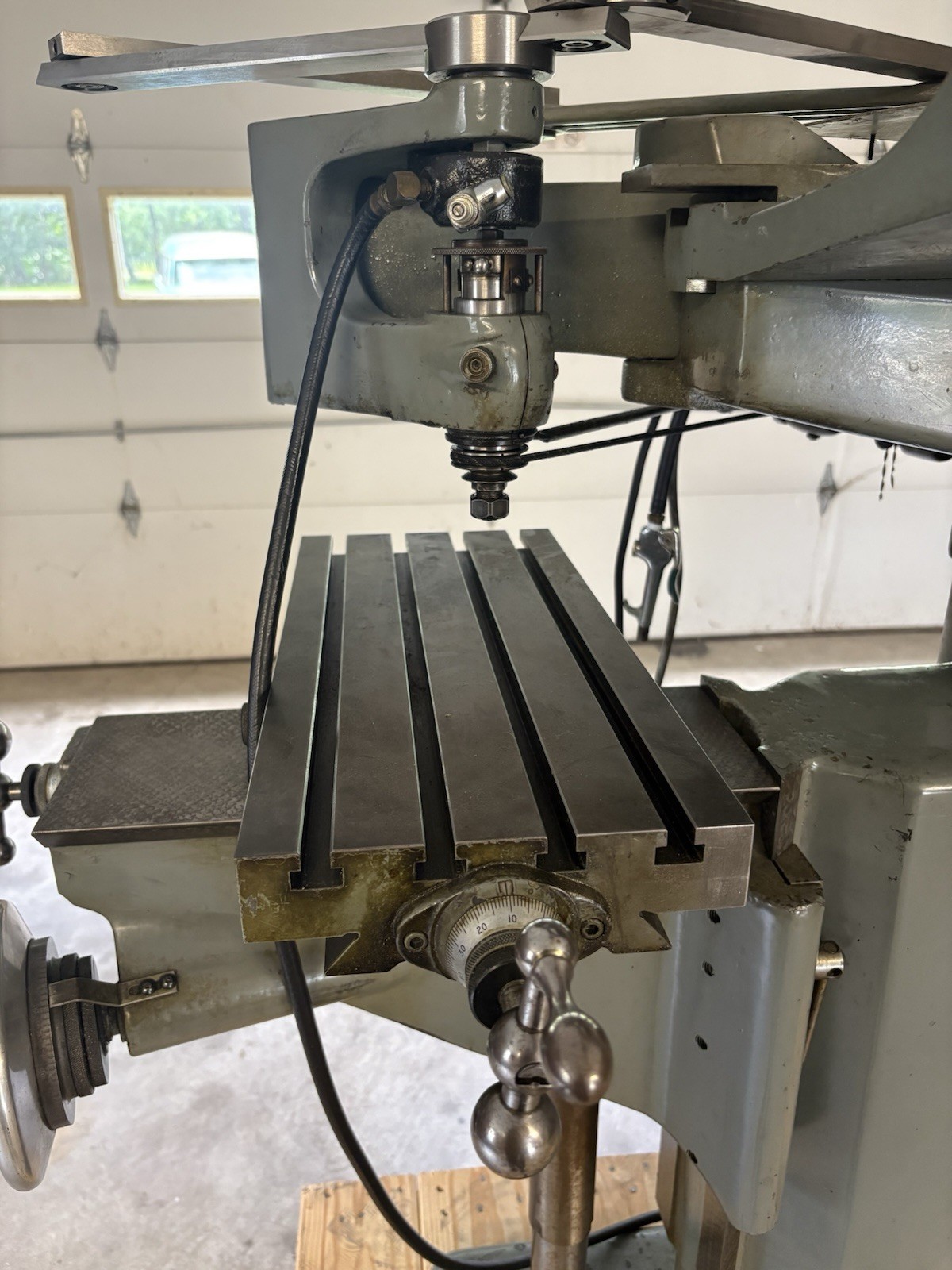

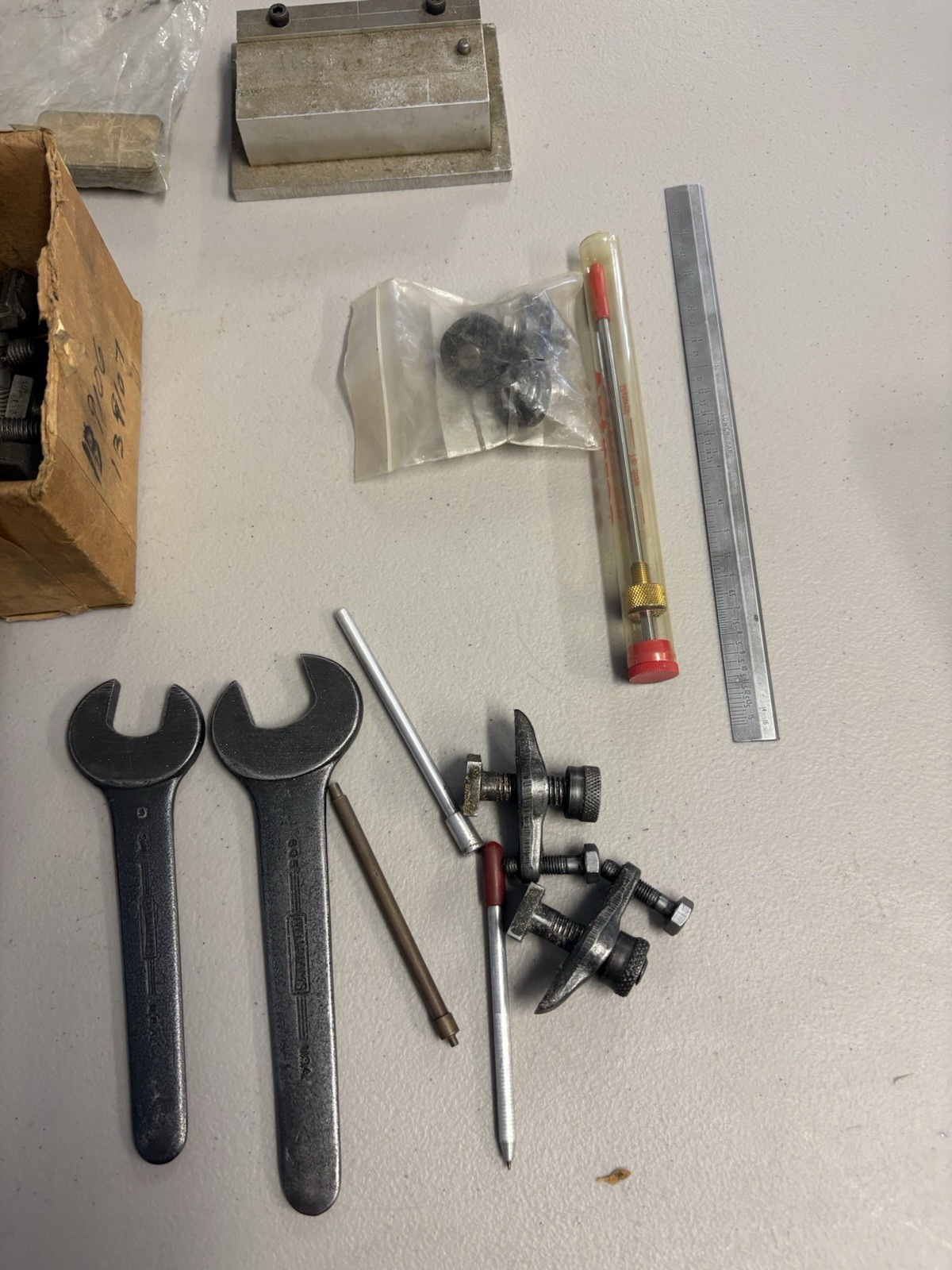

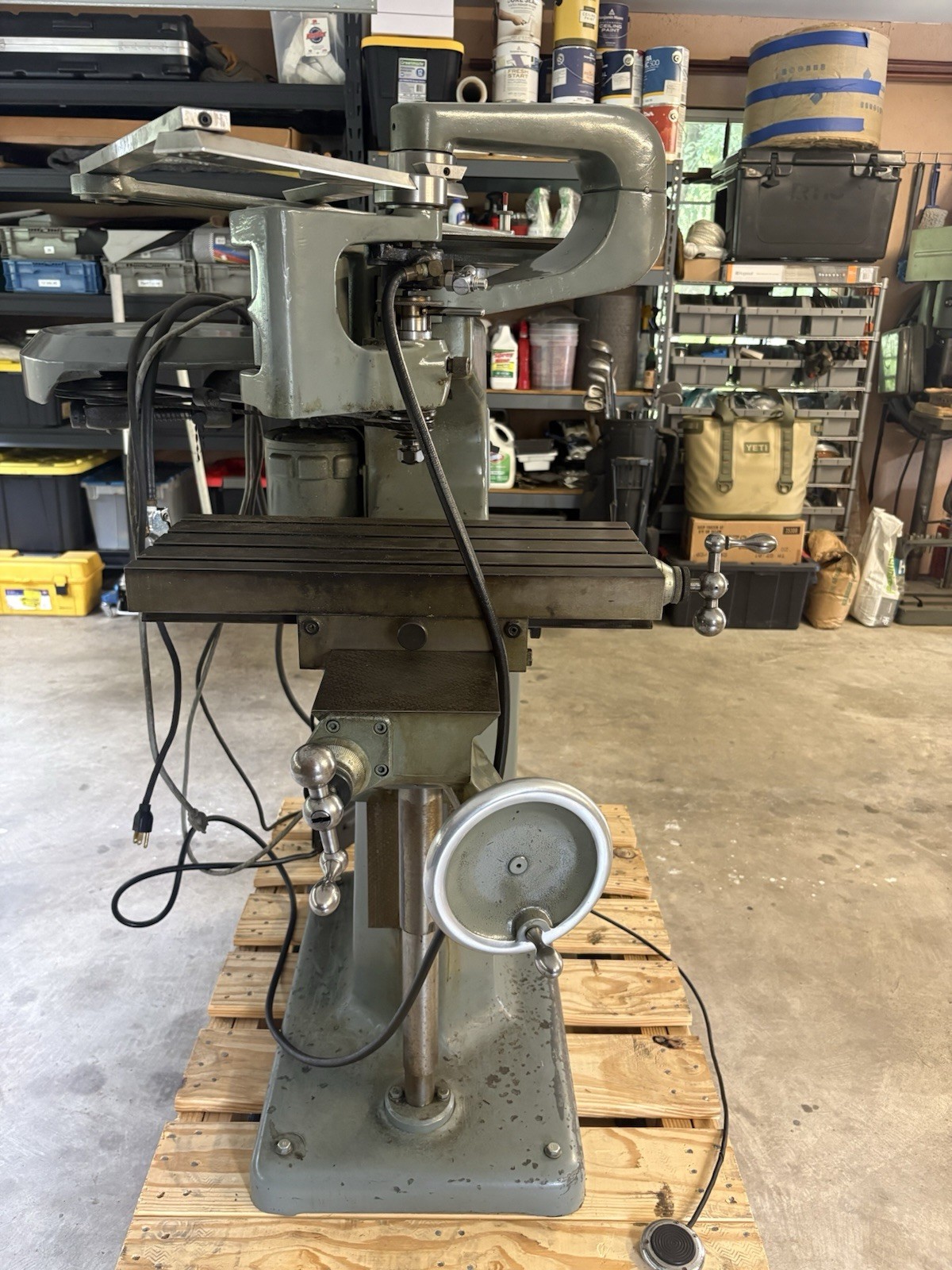

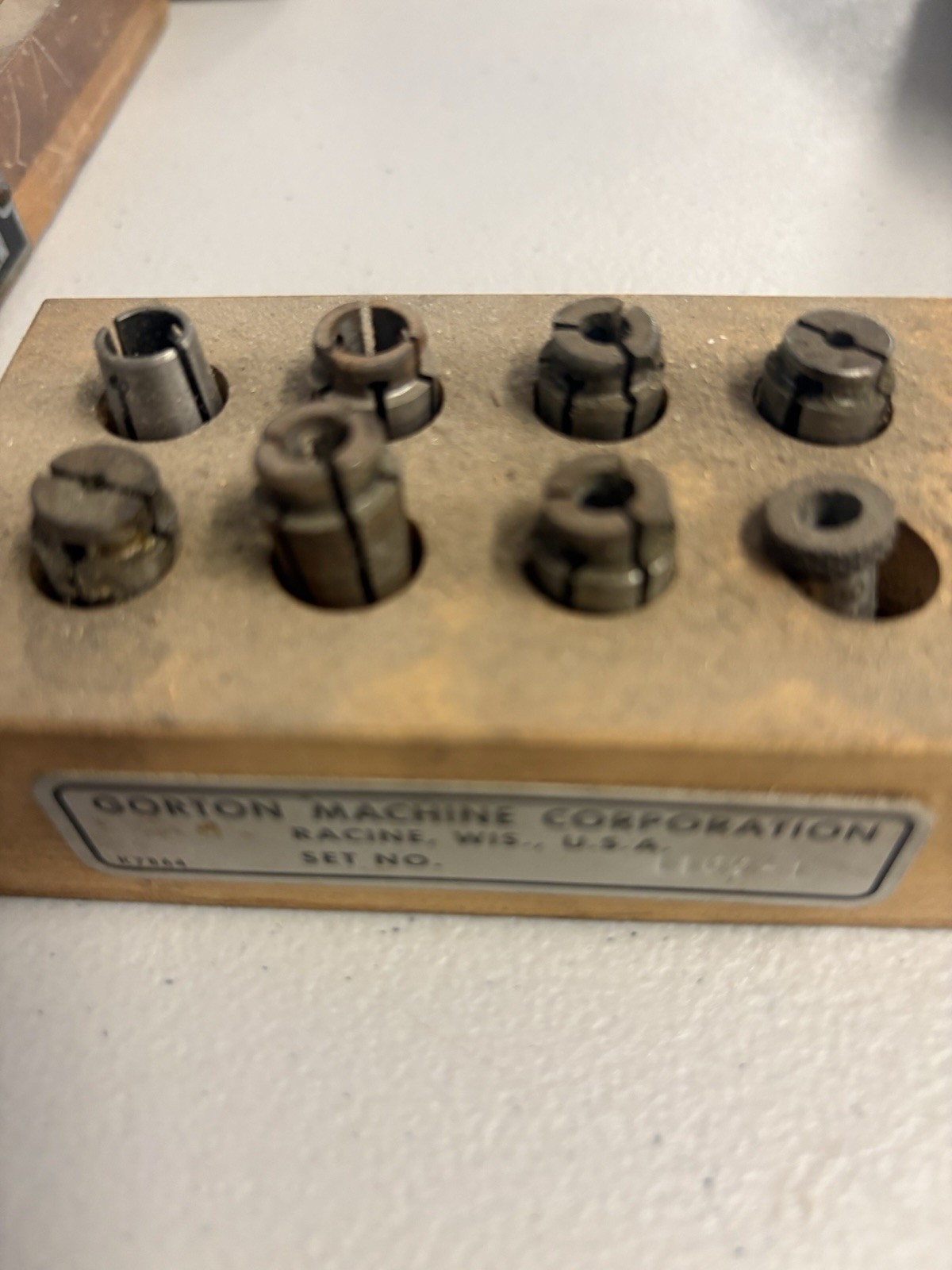

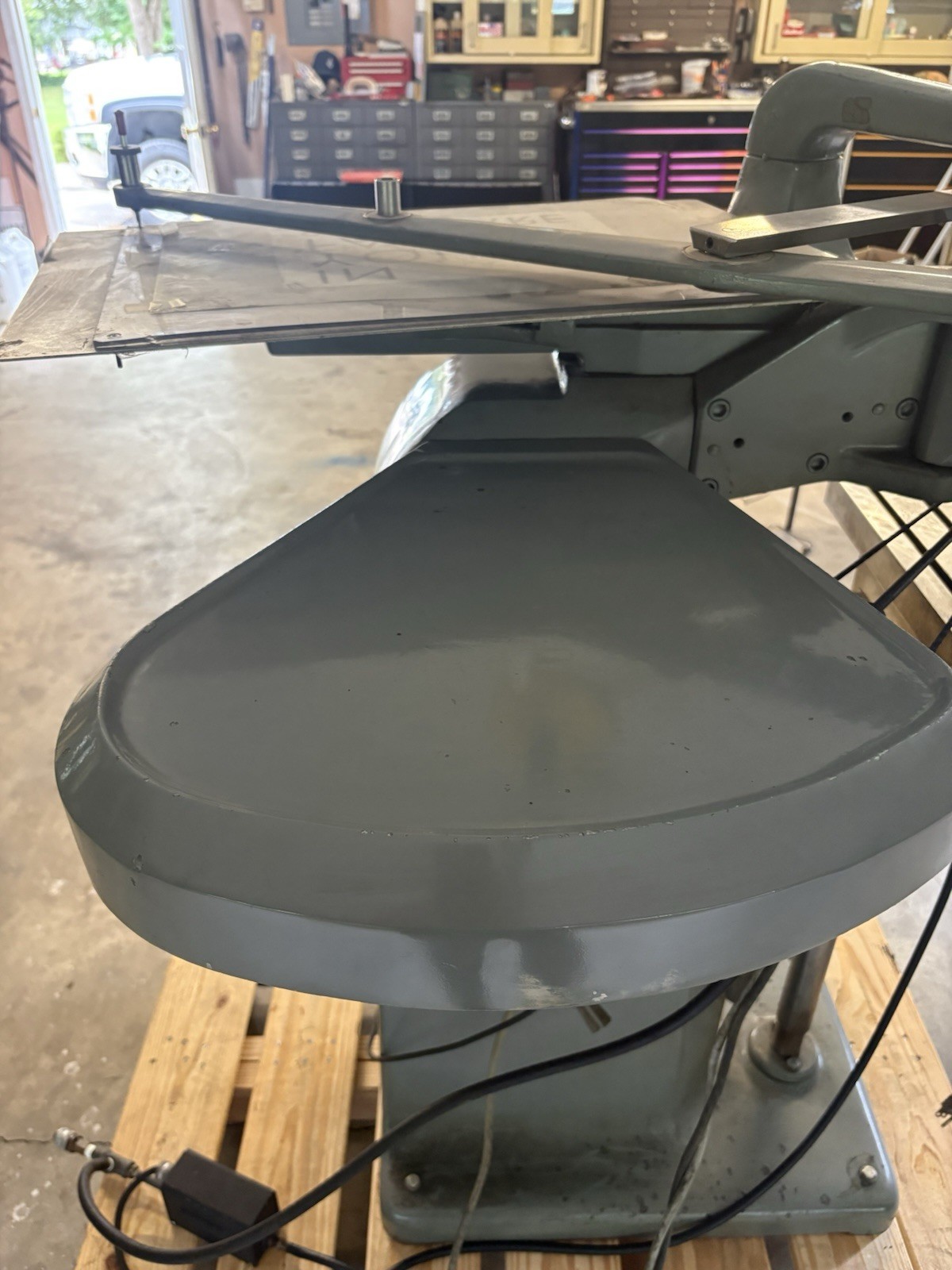

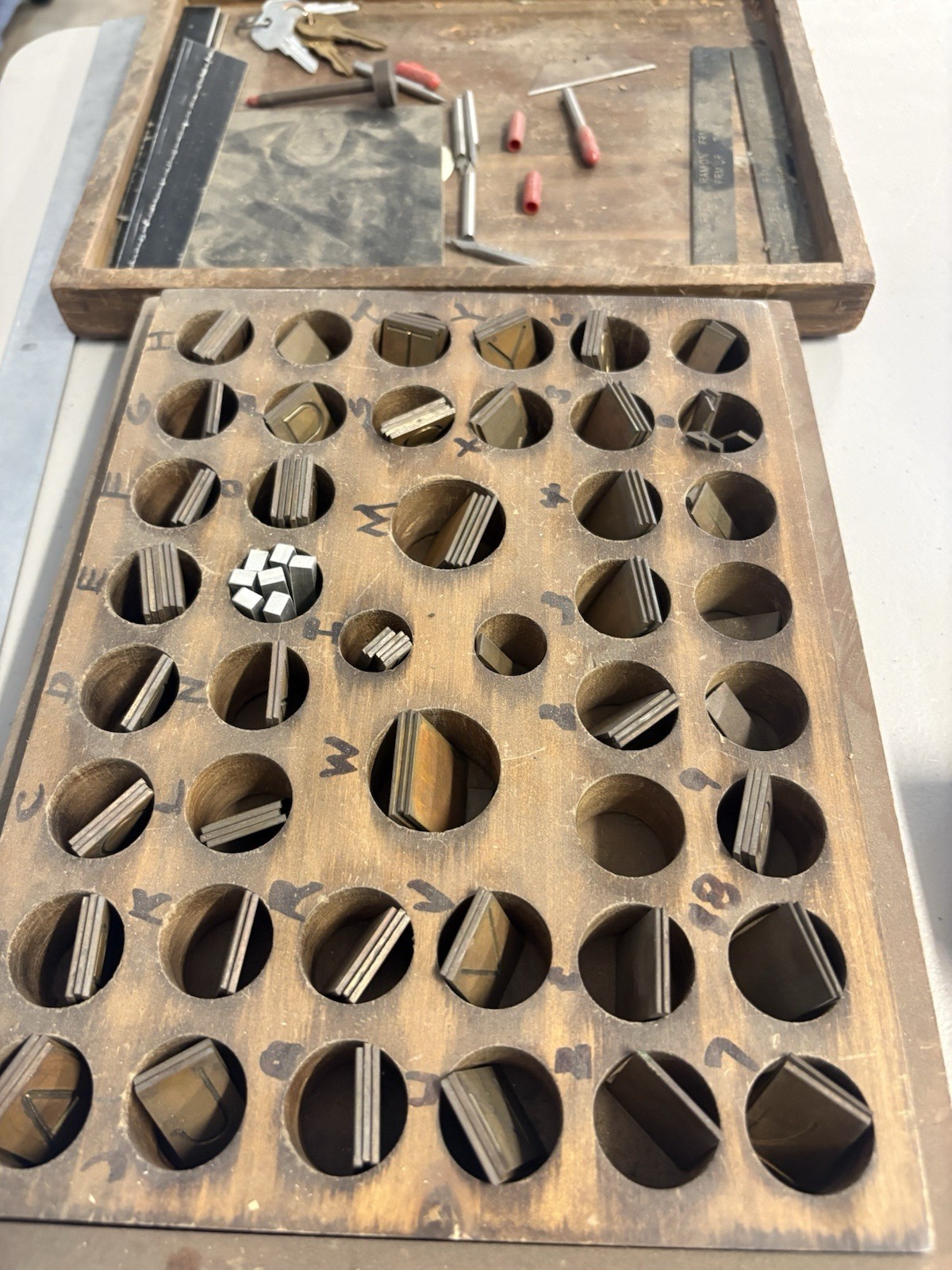

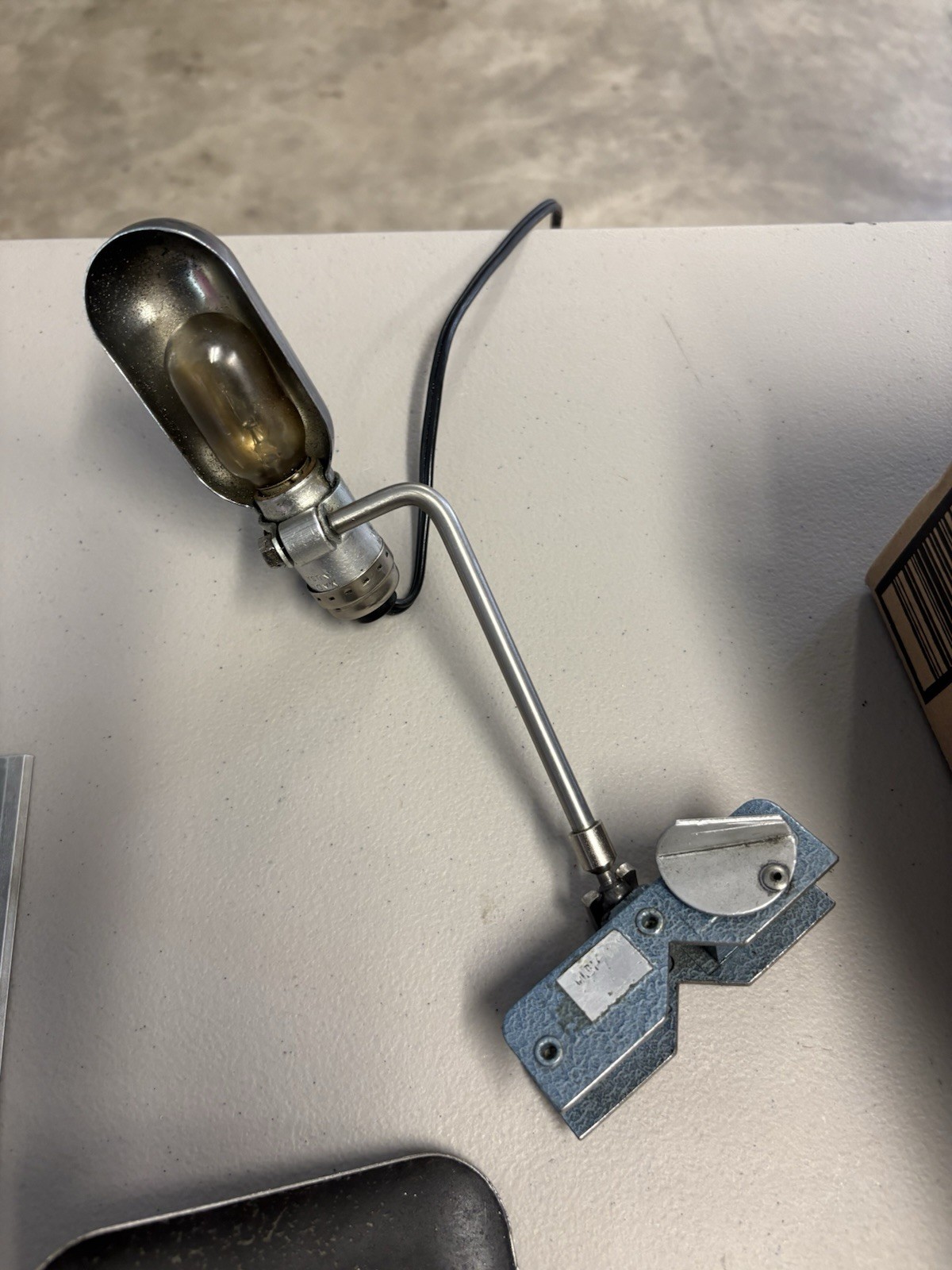

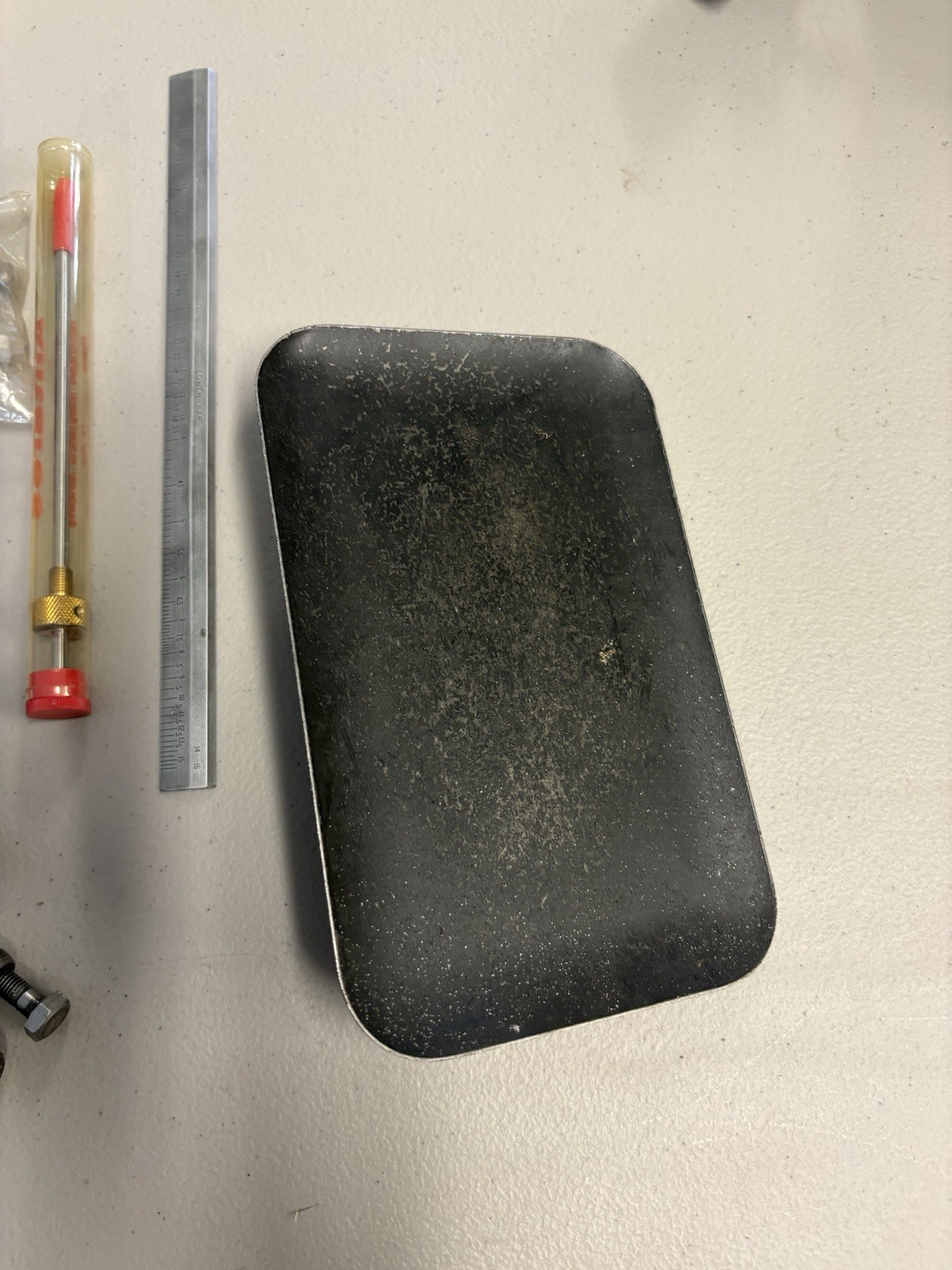

Gorton P1-2 Pantograph/Engraver with accessories

Gorton P1-2 Pantograph/Engraver with accessories

USD 1000.00 USD

SKU: V4faGdb0

Brand: Gorton

MPN: P1-2

Condition: Used

Tags: 1/2 in 10 in - 15 in 115 V 20 in - 24.9 in 2001 - 2500 Electric Gorton Less than 1 hp Less than 10 in Manual Milling Milling Machine P1-2

Categories: Metalworking Equipment

Specifications

Spindle Horsepower	Less than 1 hp
Machine Type	Milling Machine
Power Source	Electric
Table Length	20 in - 24.9 in
MPN	P1-2
Table Width	Less than 10 in
Z-Axis Travel Bed	Less than 10 in
Brand	Gorton
X-Axis Travel Bed	10 in - 15 in
Function	Milling
Control	Manual
Max Spindle Speed (RPM)	2001 - 2500
Voltage	115 V
Model	P1-2
Y-Axis Travel Bed	Less than 10 in

Manufacturer: Gorton Model: P1-2 Condition: Used Voltage: 115V/1PH/60HZ Table working surface: 8" x 18" Table dimensions, overall: 8-7/8" x 24" Longitudinal feed capacity: 10" Cross feed capacity: 8.75" Vertical spindle feed: .31" Vertical knee feed: 11.125" Copy table cross movement: 5" Slider head cross movement: 7.25" Throat opening above column ways: 8" Swing above column ways, maximum: 21" Spindle nose to table, maximum: 11.625" Spindle nose to table, minimum: 0" (8) Spindle speeds, range: 4700 to 18,000 RPM Motor: 1/4 HP Overall dimensions: 35" x 42" x 48" high Estimated weight: 640 lbs. Equipped With: Cast iron stand Will load included into price
