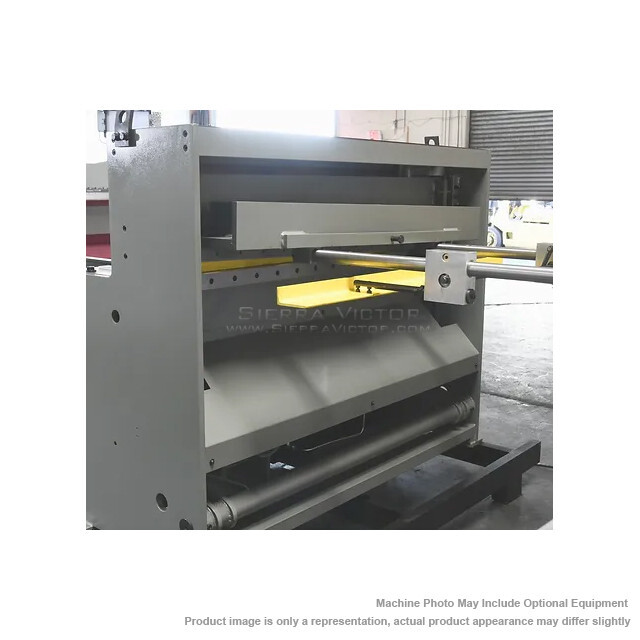

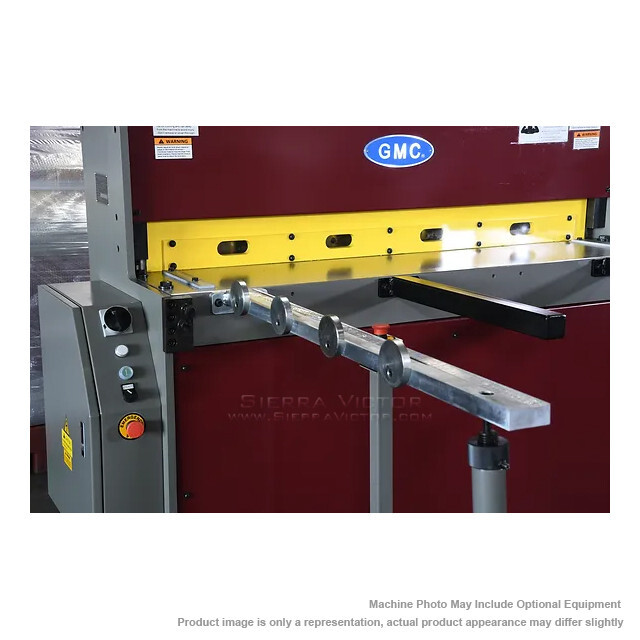

GMC HS-0610MD 6 ft x 10 ga. Hydraulic Metal Shear | 3-ph 220/440v
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | GMC Machine Tools |
| Capacity (Mild Steel) | 10 gauge |
| Power Source | Hydraulic |
| Model | HS-0610MD |
| Cutting Length | 80 in. |
Available at Sierra Victor Machinery: New GMC HS-0610MD 6 ft x 10 gauge Hydraulic Metal Shear | 3-Phase 220/440v FREE SHIPPING! Available in Voltages:*3-ph 220v: $20,850.00 *3-ph 440v: $20,850.00 For questions please contact us through ebay SPECIFICATIONS: Cutting Capacity: Mild Steel 6 ft x 10 Ga Cutting Capacity: Soft Aluminum 6 ft x 14 Ga Cutting Capacity: Stainless Steel 6 ft x 1/4 in. Minimum Capacity 24 ga. Blade length 6 ft 6 in. Strokes per minute adjustable 16-20 Worktable height 30-1/2 in. Throat Depth 16 in. Front support arm length 24 in. Back Gauge 26 in. Top Blade Rake Angle 1.5 degree Oil Tank Capacity 21 Gal Main motor 5 1/2 HP Prewired: 220/3-Phase Optional: 440V 3-Phase Machine Dimensions 98 x 35 x 52 in. Net Weight 4,150 lbs Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts FEATURES: Our HS-0610MD, 6 foot hydraulic metal shears can cut up to 10 gauge by 72” wide mild steel sheet metal. A hardened shearing blade is installed and pre-gapped ready for buyers to operate upon arrival. Our light duty hydraulic shears are dependable and deliver sharp razor cuts with ease. Taiwan machines ISO 9001 certified HD all steel construction for maximum rigidity German logic quiet Rexroth hydraulic system Adjustable stroke from 16-20 strokes per minute 60” long squaring arm with inch / mm scale Spring hold-downs High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade Full length with full view finger guard Front supports and (2) side gauges Safety type foot pedal control Jog, single continuous auto operation modes One year warranty for parts *This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us. EQUIPPED WITH: 26" manual back gauge with inch/metric dual scale & one side operated hand wheel 60" long squaring arm with inch / mm scale 2 each 24" front support arms 2 each 14" Side gauges with inlaid inch/metric dual scale Spring independent hold-downs Full length finger guard Removable safety foot pedal control One set of blades OPTIONAL ITEMS: Safety fence for enclosure of the back side of the machine: $ Please Contact Special blade set for stainless steel: $ Please Contact
