CREWORKS 9×30″ Mini Metal Lathe 1100W DC Motor 3000rpm 3-Jaw Chuck LCD Display

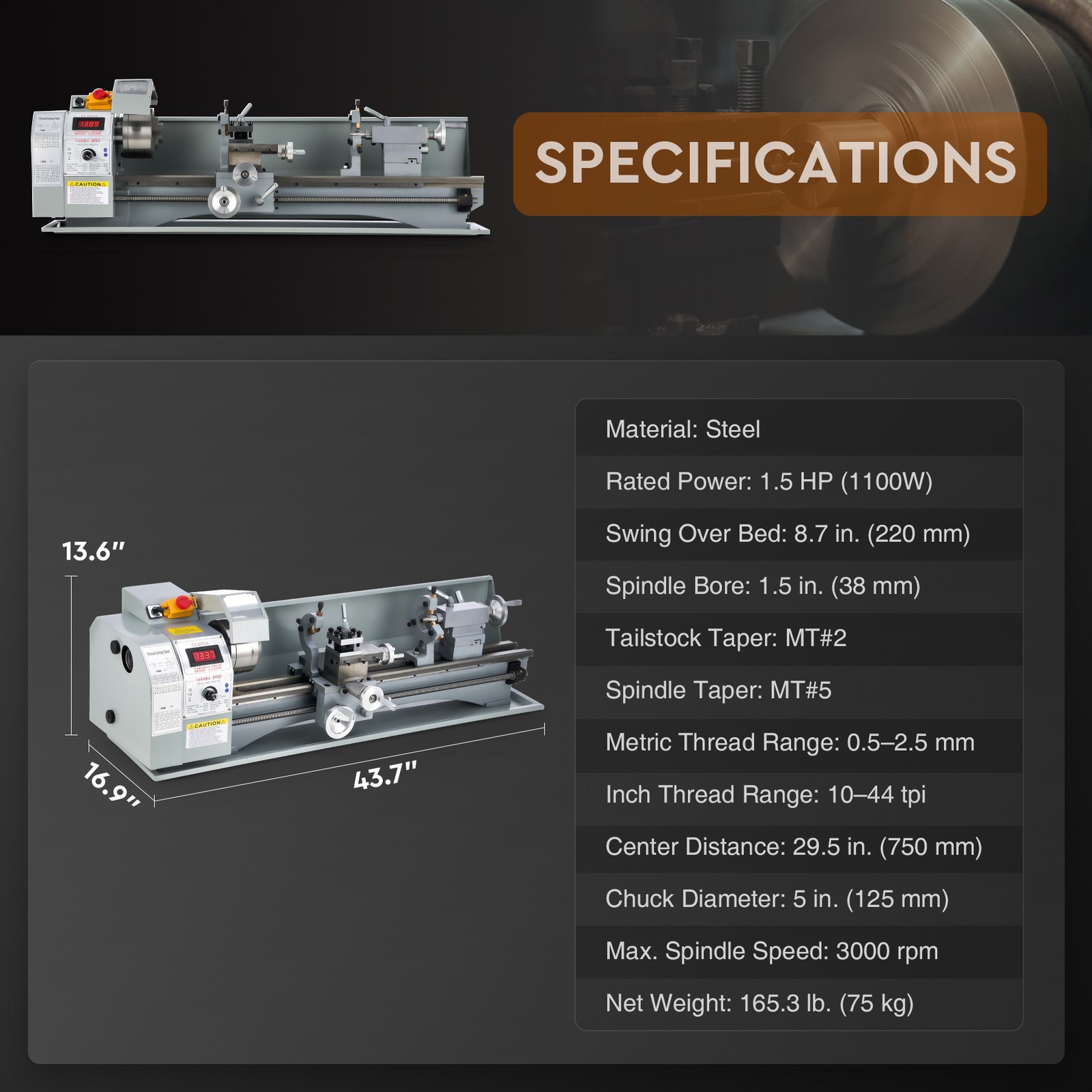

Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Creworks |
| Max Spindle Speed (RPM) | 2501 - 3000 |
| Chuck Size | 5 in |
| Control | Automatic |
| Treated Material | Metal |
| Phase | Single |
| Machine Type | Metal Lathe |
| Distance Between Centers | 21 in - 30 in |
| Swing Over Bed | 10 in |
| Motor Type | DC Moter |
| Motor Power | 1.5HP (1100W) |
| Voltage | 110V/60Hz |
| Spindle Bore | 1.5" (φ38mm) |
| Chuck Diameter | 4.92" (125mm) |
| Taper Of Spindle | MT#5 |
| Taper Of Tailstock | MT#2 |
| Spindle Speed | 50-2250±10% RPM |
| Spindle Accuracy | 0.01mm |
| Gear Material | Metal |
| Inch Thread | 8-44 T.P.I |
| Metric Thread | 0.5-3mm |
| Machine Dimension | 43.7" x 17" x 13.6" |
| Net Weight | 165.3LB (75KG) |
| Package Size | 48.8" x 18.9" x 19.3" |
| Package Weight | 183LB (83KG) |
Specifications Material: Cast Iron, Stainless Steel, ABS Rated Power: 1100W Motor Type: Brushed Spindle Bore: 1.5 in. (38 mm) Swing Over Bed: 8.7 in. (220 mm) Tailstock Taper: MT#2 Spindle Taper: MT#5 Metric Thread Range: 0.5-3 mm Inch Thread Range: 8-44 tpi Center Distance: 29.5 in. (750 mm) Chuck Diameter: 5 in. (125 mm) Max. Spindle Speed: 3000 rpm Product Dimensions: 43.7 x 16.9 x 13.6 in. (111x43x34.5 cm) Net Weight: 165.3 lb. (75 kg) Packing List 1x Mini Lathe 1x Chuck Wrench 3x Chuck Jaws 2x Screwdrivers 3x Wrenches 6x Metal Gears 1x Steady Rest 1x Follow Rest 1x Bottle for Cutting Oil 5x Hex Wrenches 1x Dead Center 3x Slideway Levers 5x Brazed Carbide Tools 1x Tool Box 1x Instructions Mini Yet Powerful: Measuring only 43.7x16.9 in., this mini metal lathe by Creworks packs a punch with its 1100W motor, making it ideal for tackling small to medium metalworking projects. It provides an 8.7 in. swing over bed and 29.5 in. distance between its centers with a 1.5 in. spindle bore. Complete Control: The mini metalworking machine's rotational speed can be set from 0 to 3000 rpm and monitored through the real-time digital display. The well-crafted head and tailstocks, large through-hole, and 4-way tool post also contribute to providing greater control of your work. Precise Engineering: Ideal for professionals, this benchtop mini metal lathe's high-precision 5 in. 3-jaw chuck handles both square and round objects with equal aplomb. Its granular precision is especially useful for jobs requiring high accuracy such as threading. Ultra Sturdy & Safe: The robust cast iron construction ensures a long service life and superior corrosion resistance. The transparent chuck guard protects you from swarf or broken tools while also permitting visibility into the point of operation. Wide Application: Tailored for precision tasks, this mini woodworking lathe effortlessly handles turning, drilling, threading, and cutting. Its capabilities extend to various materials, including wood, plastics, brass, aluminum, and more! Specifications Material: Cast Iron, Stainless Steel, ABS Rated Power: 1100W Motor Type: Brushed Spindle Bore: 1.5 in. (38 mm) Swing Over Bed: 8.7 in. (220 mm) Tailstock Taper: MT#2 Spindle Taper: MT#5 Metric Thread Range: 0.5-3 mm Inch Thread Range: 8-44 tpi Center Distance: 29.5 in. (750 mm) Chuck Diameter: 5 in. (125 mm) Max. Spindle Speed: 3000 rpm Product Dimensions: 43.7 x 16.9 x 13.6 in. (111x43x34.5 cm) Net Weight: 165.3 lb. (75 kg) Packing List 1x Mini Lathe 1x Chuck Wrench 3x Chuck Jaws 2x Screwdrivers 3x Wrenches 6x Metal Gears 1x Steady Rest 1x Follow Rest 1x Bottle for Cutting Oil 5x Hex Wrenches 1x Dead Center 3x Slideway Levers 5x Brazed Carbide Tools 1x Tool Box 1x Instructions Mini Yet Powerful: Measuring only 43.7x16.9 in., this mini metal lathe by Creworks packs a punch with its 1100W motor, making it ideal for tackling small to medium metalworking projects. It provides an 8.7 in. swing over bed and 29.5 in. distance between its centers with a 1.5 in. spindle bore. Complete Control: The mini metalworking machine's rotational speed can be set from 0 to 3000 rpm and monitored through the real-time digital display. The well-crafted head and tailstocks, large through-hole, and 4-way tool post also contribute to providing greater control of your work. Precise Engineering: Ideal for professionals, this benchtop mini metal lathe's high-precision 5 in. 3-jaw chuck handles both square and round objects with equal aplomb. Its granular precision is especially useful for jobs requiring high accuracy such as threading. Ultra Sturdy & Safe: The robust cast iron construction ensures a long service life and superior corrosion resistance. The transparent chuck guard protects you from swarf or broken tools while also permitting visibility into the point of operation. Wide Application: Tailored for precision tasks, this mini woodworking lathe effortlessly handles turning, drilling, threading, and cutting. Its capabilities extend to various materials, including wood, plastics, brass, aluminum, and more! On May 27, 2024 at 05:59:18 PDT, seller added the following information:
