6″ PRECISION QUALITY HV ROTARY TABLE HORIZONTAL VERTICAL Milling Drilling
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | Does Not Apply |
| Setting Position | Horizontal/Vertical |
| Brand | Unbranded |

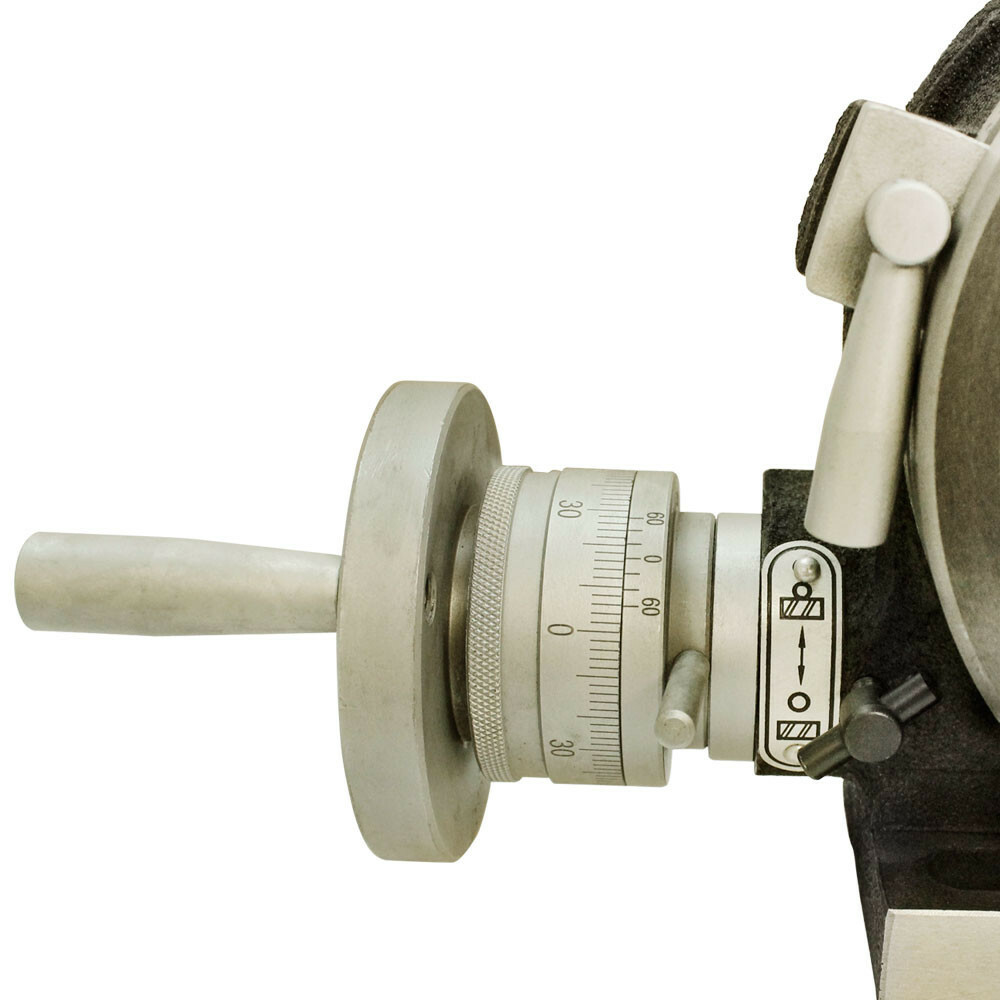

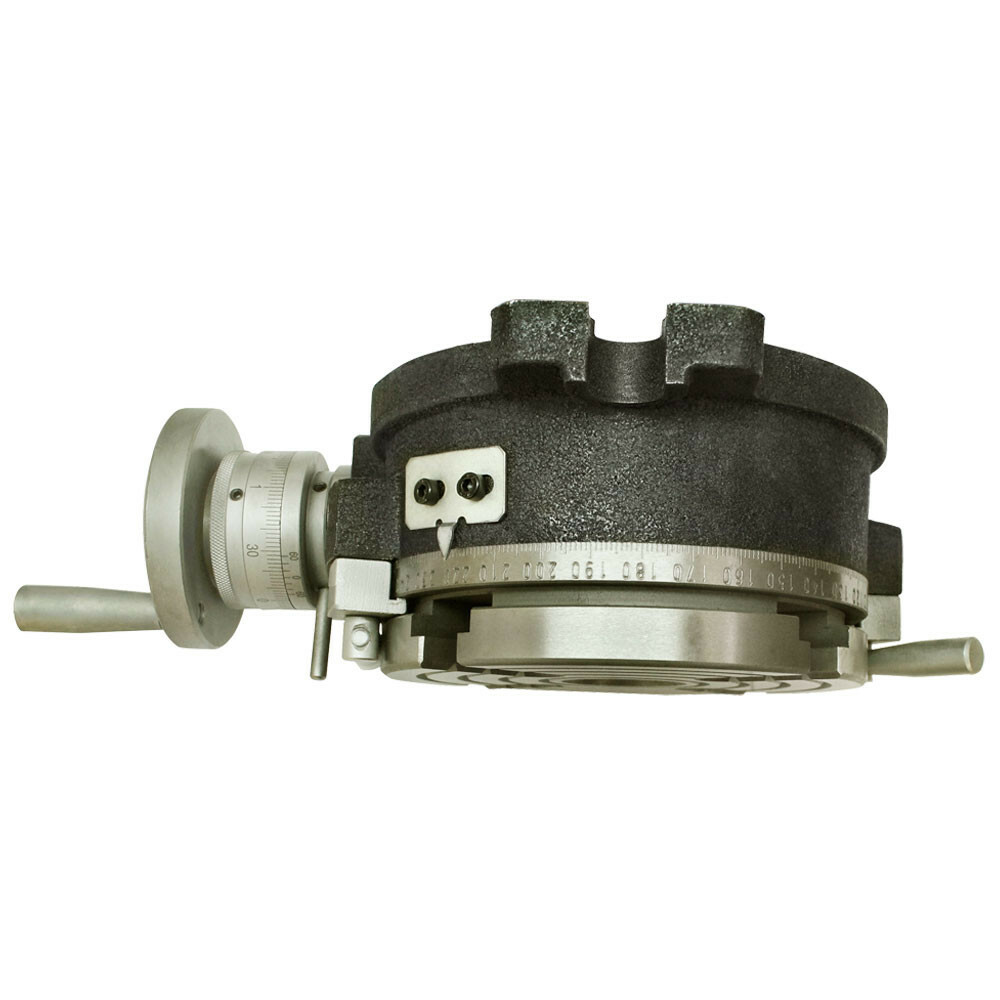

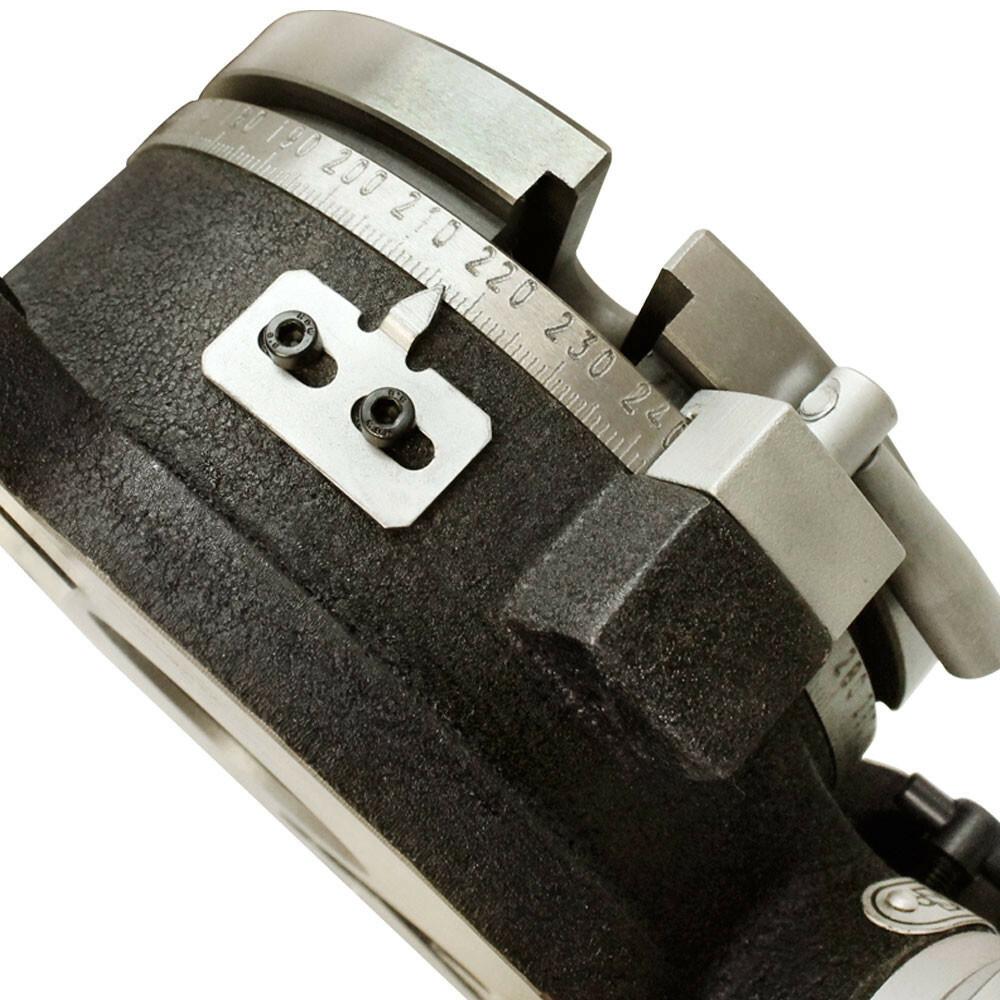

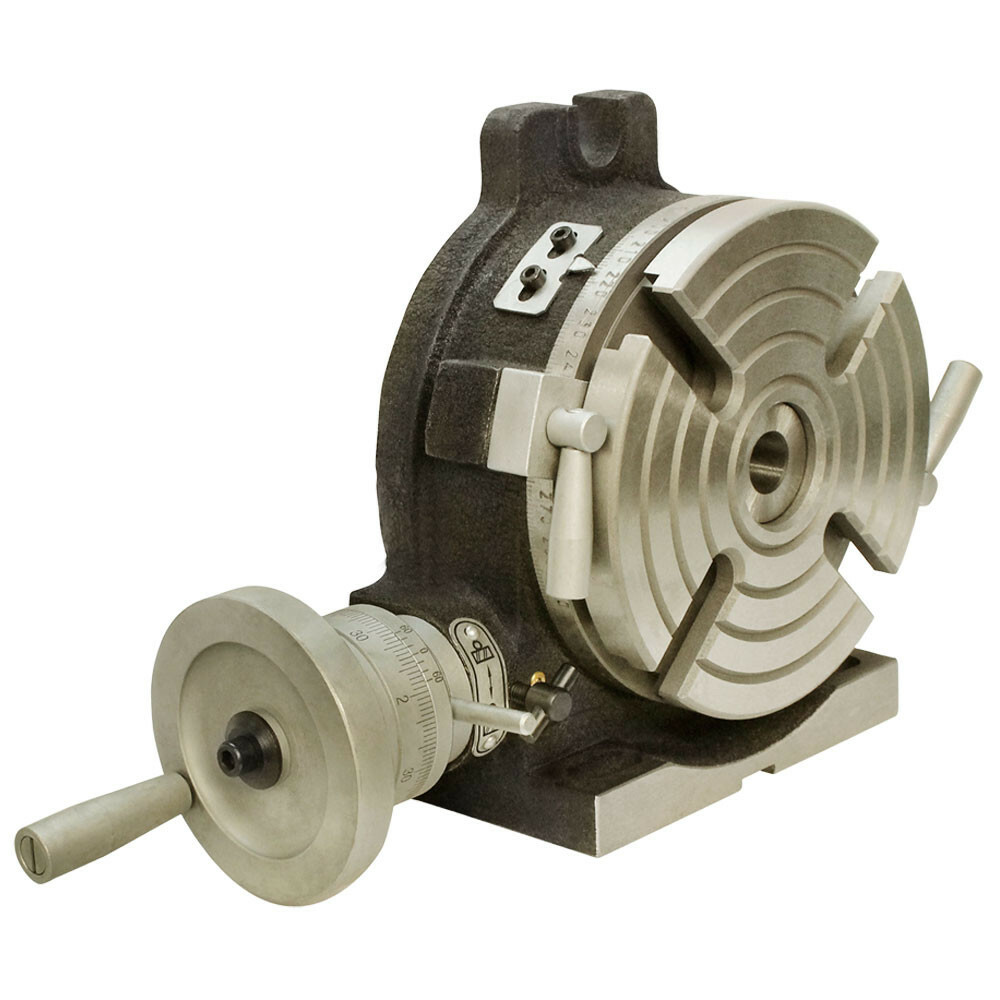

New Document 6" PRECISION QUALITY HV ROTARY TABLE HORIZONTAL VERTICAL Milling Drilling Dimension: 4 in L x 6 in W x 4 in H *Rough Estimation* Weight: 26 Pounds *Rough Estimation* Horizontal O/A Height: 3.26 inch Center Height Vertical Position: 3.93 inch Overall Height In Vertical Position: 7.87 inch Overall Width (Not Including Handle) In Vertical Position: 6.29 inch Mounting Table Bolt Width: 0.63 inch T-slot Width: 0.47 inch Center Taper: Morse Taper 2 Maximum Working Load: 330 Lbs ( Horizontally ) Maximum Working Load: 165 Lbs ( Vertically ) Center Bore: 2MT Vernier Scale Reading: 10 Seconds Without Coolant Pathway On Rotary Table Base To Catch The Coolant Designed For Milling, Drilling, Jig Boring, And Many Common Shop Applications Extra Deep Coolant Dual Positive Action Locks Satin Chrome Dials Low Profile Qty: 1
