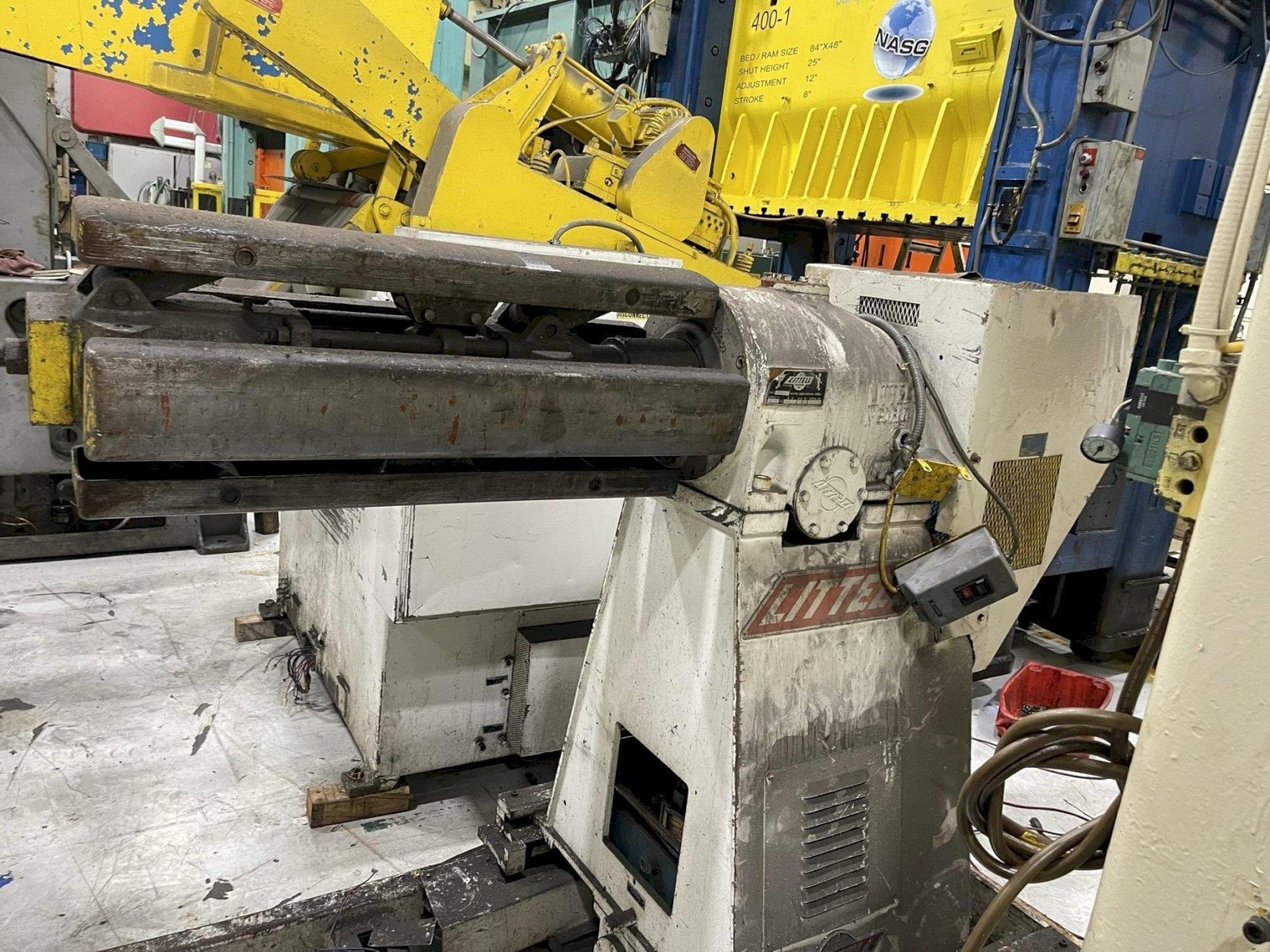

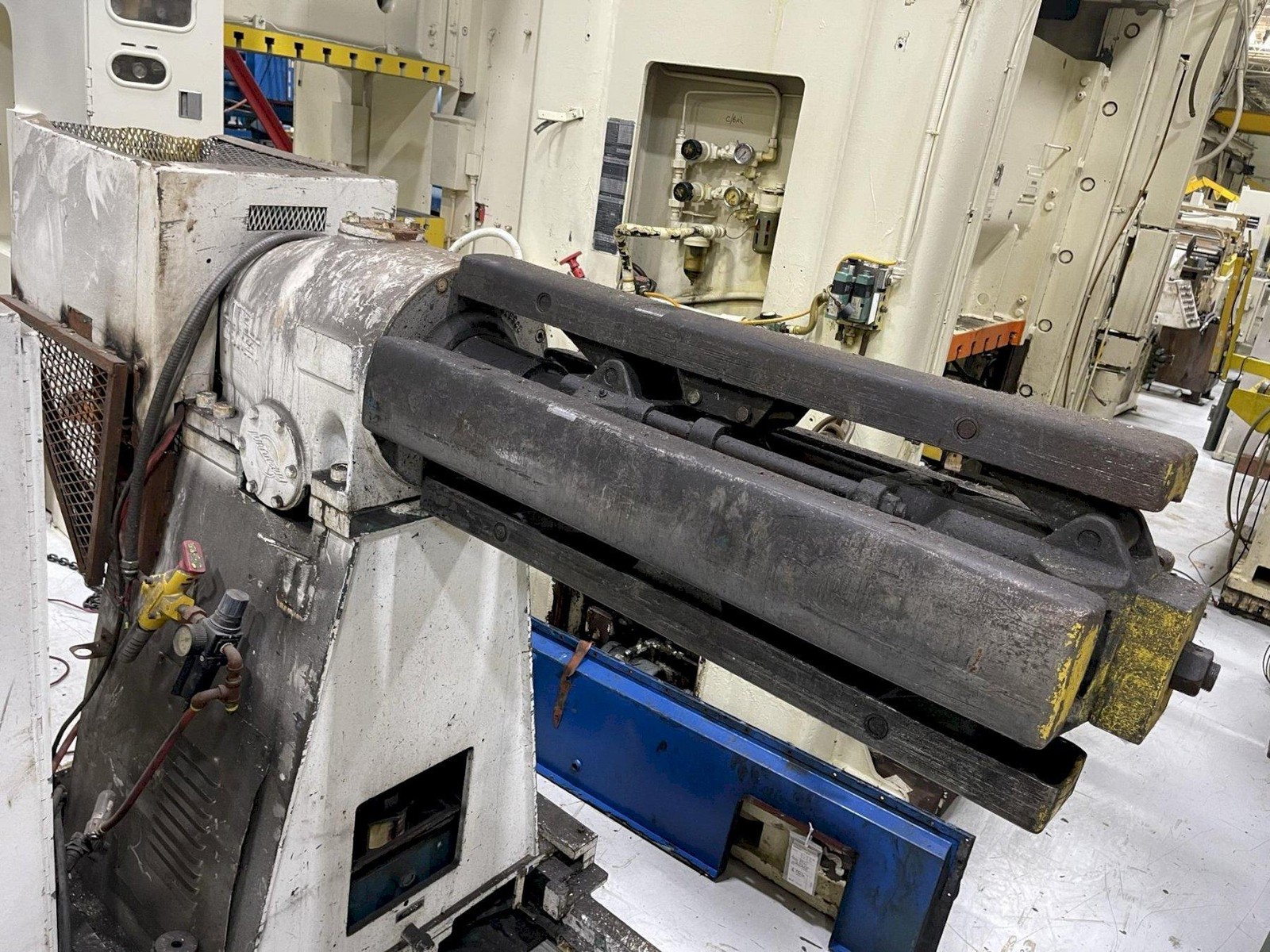

10,000 lbs x 36″ Littell Coil Reel and Powered Straightener
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | LITTELL |

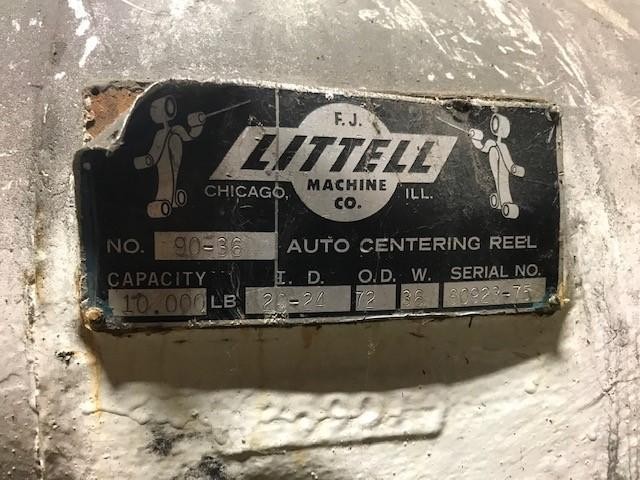

Label Unit Coil Weight 10000 pounds Coil Width 36 inches Coil Thickness .080 inches Littell Coil Reel and Powered Straightener Combination Specifications: Coil weight capacity: 10,000 Lb Stock width capacity: 36" Stock thickness capacity: .080" x 36" Wide Stock thickness capacity: .187" x 12" Wide Expansion range: 20" - 24" Coil O.D. capacity: 60" Littell Coil Reel and Powered Straightener Equipment and Features: Littell Pull Off Coil Reel Uncoiler, Model No.: 90-36Serial No.: 80923-75 Four leaf mandrel with hydraulic expansion Adjustable coil keeper arms Air brake mounted on main spindle Adjustable pull off tensioning Threading drive for jog forward and reverse Self contained hydraulic unit Littell Powered Coil Straightener Model No. 638-7PDSerial No.: 80922-75 Entry and exit powered coil straightener pinch rolls with manual adjustment Seven powered coil straightening rolls Motorized individual or unison upper powered coil straightener roll adjustments Air operated coil hold down arm with motorized cat track Adjustable stock width edge guides Exit cascade loop support rollers Lubrication system Variable speed Remote hand held pendant control for jog forward and reverse Auto/Run cycle Loop control
