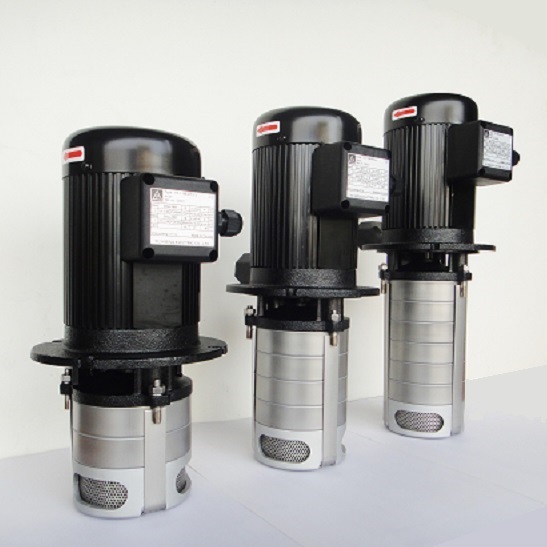

1 HP Multistage CNC Machine Coolant Pump, 6 stages 253mm 10″, 3 impellers
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Model | TC-1253-4T-6-X |
| Country/Region Of Manufacture | Taiwan |
| Coolant Pump Type | Immersion Coolant Pump |
| Function | Coolant Circulation |
| Flow Q | 4T (4m³/h) |
| Impeller No. | 2, 3 |
| Shaft Length | 253 mm (10 in) |
| Brand | YU HSENG |
!! !! # For buying more quantity (>2 ) or other model, Please ask or message me. Product DescriptionsTC Series coolant pump is single stage and developed for spraying of cooling lubricants and the circulation system, especially for machine tools.Yu Hseng Electric TC multistage pump are developed for industrial machine center, and used in spraying of cooling lubricants and applications, especially for machine tools like CNC, Turning, Milling, Drilling, Cutting, Slitting, Grinding etc. operations.(Lathe, lapping machine, , pressing machine, stamping machine, tapping machine, punch machine, cooling system, oil cooling, water circulation). Product Features- Immerse vertical multistage centrifugal pump- Co-axial pump and motor design- Impellers assemble on extended motor shaft- High quality stainless steel Immersion stages- Easy installation into machine and maintain Product Specifications- Brand: YU HSENG- Model: TC-1253-4T-6-X- Power: 750 W (1 HP )- Q: 4m³/h- Phase & Voltage Options: 3 Phase & 220V; 240V; 440V; 480V- Discharge Bore: PT 3/4 "- Length ( flange to bottom): 253 mm (~10 ") - Max Flow Rate in 60 Hz: 38.8 GPM ( 147 L/min )- Max Lift (Head Height) in 60 Hz : 78.1 ft (23.8 M )- Max Pressure in 60 Hz : 34.1 PSI - Max Flow Rate in 60 Hz: 41.2 GPM ( 156 L/min )- Max Lift (Head Height) in 60 Hz : 114.5 ft (34.9 M )- Max Pressure in 60 Hz : 49.6 PSI # Made in Taiwan # For buying more quantity (>2 ) or other model, Please ask or message me.
